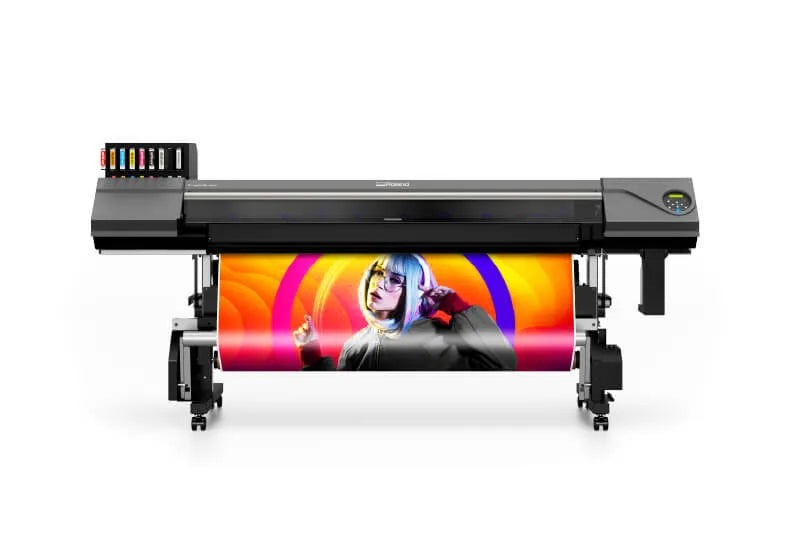

Roland TrueVIS MG 300 30 Printer Cutter

Roland TrueVIS MG 300 30 Printer Cutter

Price:

$19,595.00

SKU:

194510776

Brand:

Roland

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the MG series adds a new dimension to graphics printing. High-definition output, specialty printing for textures and effects, broad media compatibility combined with user-friendly features makes the MG the ultimate in professional UV print and cut.

Product Specification

Popular Applications

Backlit Graphics
Window Graphics
Stickers and Labels
Packaging Prototypes
Signange
POP and Displays
Specialized Art Prints

MODEL	MG-300
PRINTING TECHNOLOGY	Piezo ink-jet method
ACCEPTABLE MEDIA WIDTHS	7.2 to 30 in. (182 to 762 mm)
ACCEPTABLE MEDIA THICKNESS	Maximum 39.3 mil (1.0 mm) with liner, for printing. Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
ACCEPTABLE MEDIA ROLL OUTER DIAMETER	Maximum 8.2 in. (210 mm)
ACCEPTABLE MEDIA ROLL WEIGHT	Maximum 55 lb. (25 kg)
ACCEPTABLE MEDIA CORE DIAMETER	3 in. (76.2 mm) or 2 in. (50.8 mm)
PRINTING/CUTTING WIDTH^*1	Maximum 28.9 in. (736 mm)
INK TYPE	ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
INK COLORS	Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) Eight colors (cyan, magenta, yellow, black, red, orange, white) Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) Four colors(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
INK CURING UNIT	Built-in UV-LED lamp
PRINTING RESOLUTION	Maximum 1440 x 1440 dpi
PRINTING SPEEDS	150 sqft/hr at 720 x 720 dpi
CUTTING SPEED	10 to 300 mm/s (0.39 to 11.8 in/s)
CUTTING BLADE FORCE^*2	30 to 500 gf
CUTTING BLADE OFFSET	0 to 0.059 in (0 to 1.5 mm)
CONNECTIVITY	Ethernet (100BASE-TX/1000BASE-T, automatic switching)
POWER CONSUMPTION	During Operation: 240 W, During Sleep Mode: 40 W
ACOUSTIC NOISE LEVEL	During Operation: 63 dB (A) or less, During Standby: 53 dB (A) or less
DIMENSIONS/WEIGHT	77[W] x 31[D] x 52[H] in 1945[W] x 781[D] x 1316[H]mm, 276lb (125kg)
OPERATING ENVIRONMENT	Power on: Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
