Summa Pneumatic Oscillating Tool L

Summa Pneumatic Oscillating Tool L

Price:

$7,500.00

SKU:

194598712

Brand:

Summa

Condition:

New

Weight:

11.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

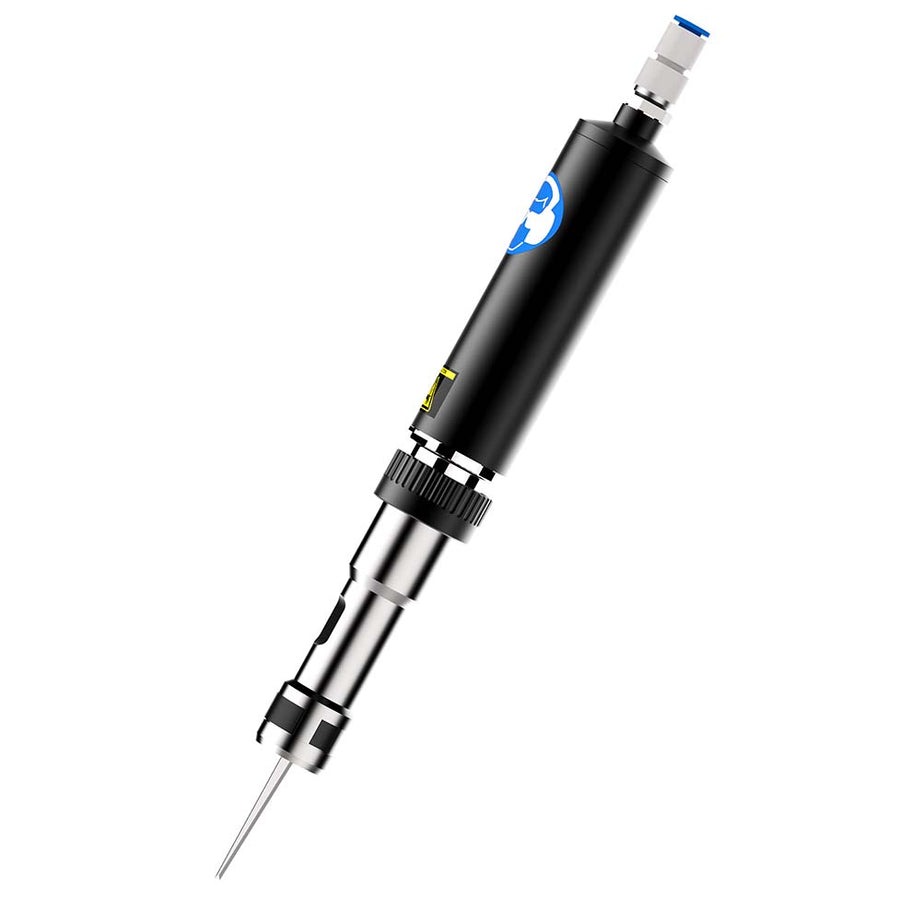

Summa Pneumatic Oscillating Tool L

The Pneumatic Oscillating Tool-L (POT-L) is capable of cutting materials up to 42mm thick. The robust construction of the tool makes it suitable for cutting thick material, such as honeycomb board, corrugated board, and foam board. The POT-L is similar to the POT but is used with a longer type of knife, perfect for cutting soft material with a minimum thickness of 20 mm and a maximum thickness up to 42 mm.

Includes:

Pneumatic Oscillator with Gliding Disk
1 POT-L knife L50 T1.0 with hex key
Pneumatic Kit, including Pneumatic Oil and Oil Mister
Installation Guide and Collar Wrench

Note: Air-compressor not included.

Product Specification

Specifications

Stroke: 8mm*
Frequency: 150Hz*
Compressed Air Requirements: 6bar & 78l/min.
It is advised that the compressor have 4-5 times the airflow capacity: +/- 360l/min

* The Stroke and Frequency may drop depending on the load on the tool.

This tool can be used with the following materials:

Cardboard:	Honeycomb Board >= 10mm Reboard >= 10mm
Synthetic Materials:	Corrugated Plastic > 5mm
Composite Sandwich Board:	Foamboard with Paper > 5mm Foamboard with Plastic Foamboard with Aluminum
Special Materials:	Foam Rubber
