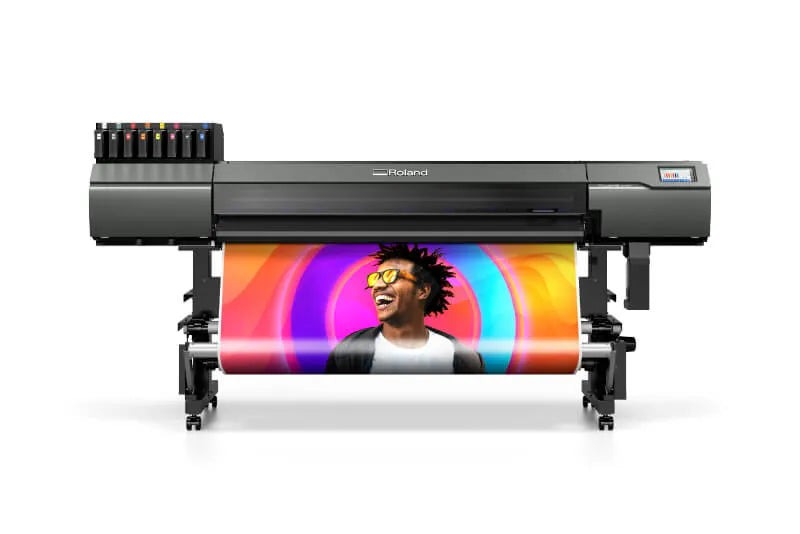

Roland TrueVIS LG 300 30 Printer Cutter

Home
Vinyl Cutter
Roland TrueVIS LG 300 30 Printer Cutter

Roland TrueVIS LG 300 30 Printer Cutter

Price:

$25,000.00

SKU:

194586775

Brand:

Roland

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG series adds a new dimension to graphics printing. Staggered print heads, ECO-UV inks, and Ture Rich Color combined with user-friendly features makes the LG the ultimate in professional UV print and cut.

Product Specification

Specifications

Staggered print heads, ECO-UV inks, and Ture Rich Color combined with user-friendly features makes the LG the ultimate in professional UV print and cut
Easy-to-operate, and intuitive 7″ LCD touchscreen control panel
Automated media calibration saves time and material
A redesigned chassis, high-quality components, and a variety of media handling improvements
Newly designed, adjustable media take-up unit accommodates rolls of different sizes
One touch media clasp makes loading media rolls easy for a single operator
Combine Orange and Red inks to push the color boundaries of digital printing
High opacity white ink formulated to produce high-quality window graphics with economical ink usage

Popular Applications

Backlit Graphics
Window Graphics
Stickers and Labels
Packaging Prototypes
Signange
POP and Displays
Specialized Art Prints

MODEL	LG-300
PRINTING TECHNOLOGY	Piezo ink-jet method
ACCEPTABLE MEDIA WIDTHS	7.2 to 30 in. (182 to 762 mm)
ACCEPTABLE MEDIA THICKNESS	Maximum 39.3 mil (1.0 mm) with liner for printing, Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22mm) without liner for cutting
ACCEPTABLE MEDIA ROLL OUTER DIAMETER	Maximum 9.8 in. (250 mm)
ACCEPTABLE MEDIA ROLL WEIGHT	Maximum 66 lbs (30 kg)
ACCEPTABLE MEDIA CORE DIAMETER	3 in. (76.2 mm) or 2 in. (50.8 mm)
PRINTING/CUTTING WIDTH^*1	Maximum 28.9 in. (736 mm)
INK TYPE	ECO-UV (EUV5P)
INK CAPACITY	750 ml
INK COLORS	Eight colors (Cyan, Magenta, Yellow, Black, Gloss, Primer, White, and Red) Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Eight colors (Cyan, Magenta, Yellow, Black, Primer White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, Gloss, Primer, and White) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colors (Cyan, Magenta, Yellow, and Black)
INK CURING UNIT	Built-in UV-LED lamp
PRINTING RESOLUTION	Maximum 1200 x 1200 dpi
PRINTING SPEEDS	315 sqft/hr at 720 x 600 dpi
CUTTING SPEED	10 to 300 mm/s (0.39 to 11.8 in/s)
CUTTING BLADE FORCE^*2	30 to 500 gf
CUTTING BLADE OFFSET	0 to 0.059 in (0 to 1.5 mm)
MEDIA HEATING SYSTEM	Front heater set temperature: 86 to 131 °F (30 to 55 ℃)
CONNECTIVITY	Ethernet (10BASE-T/100BASE-TX, automatic switching)
POWER CONSUMPTION	During Operation: 650 W, During Sleep Mode: 85 W
ACOUSTIC NOISE LEVEL	During Operation: 63 dB (A) or less, During Standby: 53 dB (A) or less
DIMENSIONS/WEIGHT	80.3[W] x 29.5[D] x 55.6[H] in 2,038[W] x 748[D] x 1412[H]mm, 371lb (168kg)
OPERATING ENVIRONMENT	Power on: Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
