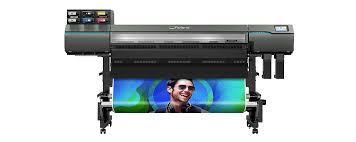

Roland TrueVIS AP 640 64 Resin Printer

Home
Vinyl Cutter
Roland TrueVIS AP 640 64 Resin Printer

Roland TrueVIS AP 640 64 Resin Printer

Price:

$14,645.00

SKU:

194518389

Brand:

Roland

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Build and expand your sign and graphics business with a wide range of applications, low running-costs, and the quick drying benefits of Roland DG's first resin printer. Dual, staggered printheads with variable dot printing and True Rich Color presets offer natural, vibrant print results with higher color saturation. Water-based TrueVIS Resin Ink provides quick-drying, scratch-resistant, and safe results on a wide range of media. Legendary Roland DG machine reliability, service, and support now available in a resin ink printer.

Product Specification

Specifications

Drying time is virtually eliminated thanks to a built in heating unit
New 700 ml high-capacity ink pouches are easily replaceable, supporting economical and environmental printing operation
Dual, staggered Piezo printheads receive optimizer and ink in tandem to maintain optimal workflow
Newly developed water-based resin ink and innovative True Rich Color 3 preset works together to ensure vibrant color and natural-looking print quality time and again
High pigment, quick drying resin inks let you produce more output with less ink, effectively reducing running costs
The AP-640 comes with user-friendly, feature-filled RIP software, and Roland DG Connect print operation app
7-inch, full-color touch panel offers easy print options with intuitive settings and functions

Popular Applications

Wallpaper
Interior Wall Graphics
Stickers and Labels
Fabric and Fine Art
Vehicle Graphics
Floors and More

MODEL	AP-640
PRINTING TECHNOLOGY	Piezo ink-jet method
ACCEPTABLE MEDIA WIDTHS	10.2 to 64 in. (259 to 1625 mm)
ACCEPTABLE MEDIA THICKNESS	Maximum 39.3 mil (1.0 mm) with liner
ACCEPTABLE MEDIA ROLL OUTER DIAMETER	Maximum 9.8 in. (250 mm)
ACCEPTABLE MEDIA ROLL WEIGHT	Maximum 99 lb. (45 kg)
ACCEPTABLE MEDIA CORE DIAMETER	3 in. (76.2 mm) or 2 in. (50.8 mm)
PRINTING WIDTH^*1	Maximum 63.5 in. (1615 mm)
INK TYPE	Resin ink 700 ml pouch Four colors (cyan, magenta, yellow, and black) and optimizer
INK DRYING SYSTEM^*2	Print heater set temperature: 77 to 113°F (25 to 45°C) Dryer set temperature: 158 to 230°F (70 to 110°C)
PRINTING RESOLUTION	Maximum 1200 x 1200 dpi
CONNECTIVITY	Ethernet (100BASE-TX/1000BASE-T, automatic switching)
POWER CONSUMPTION	During Operation: 4,000 W, During Sleep Mode: 65 W
ACOUSTIC NOISE LEVEL	During Operation: 69 dB (A) or less, During Standby: 53 dB (A) or less
DIMENSIONS/WEIGHT	113.7[W] x 33[D] x 61.1[H] in 2886[W] x 836[D] x 1550[H]mm, 587lb (266kg)
OPERATING ENVIRONMENT	Power on: Temperature: 68 to 86 °F (15 to 32 °C), humidity: 20 to 80 %RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
