Mimaki Kebab HS
Product Description

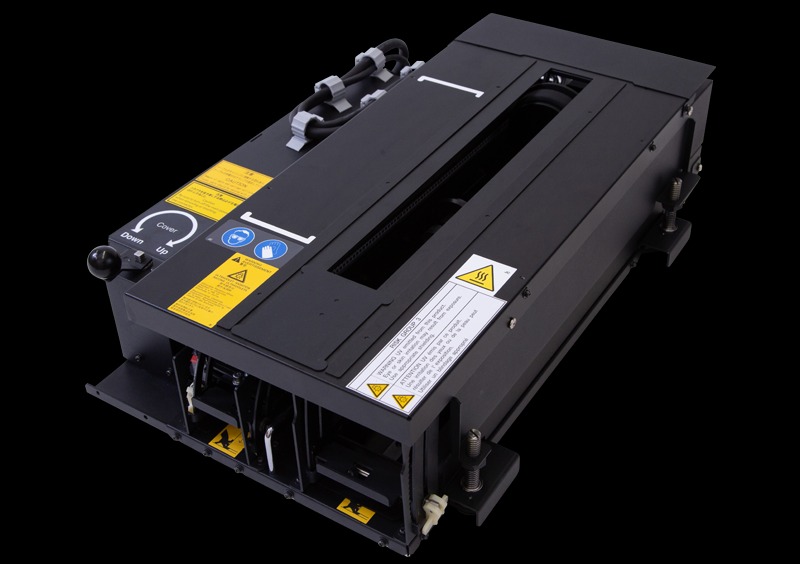

Mimaki Kebab HS
The Mimaki Kebab HS is a high-speed rotary printing attachment designed for Mimaki UV flatbed printers, enabling precise and stable printing on cylindrical and tapered objects. Engineered for industrial-grade performance, the Kebab HS supports consistent rotation, accurate media alignment, and high-quality UV printing on round items such as bottles, tubes, tumblers, containers, and promotional products.
With its improved rotation mechanism and enhanced speed compared to standard rotary units, the Mimaki Kebab HS is ideal for print businesses focused on personalization, promotional items, packaging samples, and industrial marking. It integrates seamlessly with compatible Mimaki UV printers, providing reliable output with minimal setup time.
⭐ Key Benefits
-
High-speed rotary printing for cylindrical objects
-
Precise rotation control for consistent print quality
-
Supports straight and tapered round media
-
Ideal for bottles, cups, tubes, and containers
-
Designed for professional UV flatbed workflows
-
Stable construction for industrial production environments
Product Specification
⚙️ Full Specifications – Mimaki Kebab HS
General
-
Product Type: High-Speed Rotary Printing Attachment
-
Function: Printing on cylindrical and round objects
-
Printing Method: Synchronized rotary motion with UV flatbed printers
Media Compatibility
-
Supported Media Shapes: Cylindrical and tapered objects
-
Minimum Object Diameter: approx. 10 mm
-
Maximum Object Diameter: approx. 110 mm
-
Maximum Media Length: approx. 300 mm
-
Supported Media Weight: Up to approx. 3 kg per object
Rotation System
-
Drive Method: Precision motor-driven rotary system
-
Rotation Accuracy: High-precision synchronized control
-
Speed Mode: High-speed printing (HS version)
Compatibility
-
Compatible Printers:
Mimaki UJF series UV flatbed printers (model compatibility depends on configuration)
Installation
-
Mounting Type: Table-mounted accessory
-
Setup: Tool-assisted installation with printer synchronization
???? Dimensions & Weight
-
Machine Weight: 46.3 lb (approx. 21 kg)
(Weight listed for accessory unit only, excluding printer)
???? Typical Applications
-
Promotional bottles and drinkware
-
Cosmetic and pharmaceutical containers
-
Industrial tubes and components
-
Personalized gifts and custom merchandise
-
Packaging prototypes and samples
