General Specifications

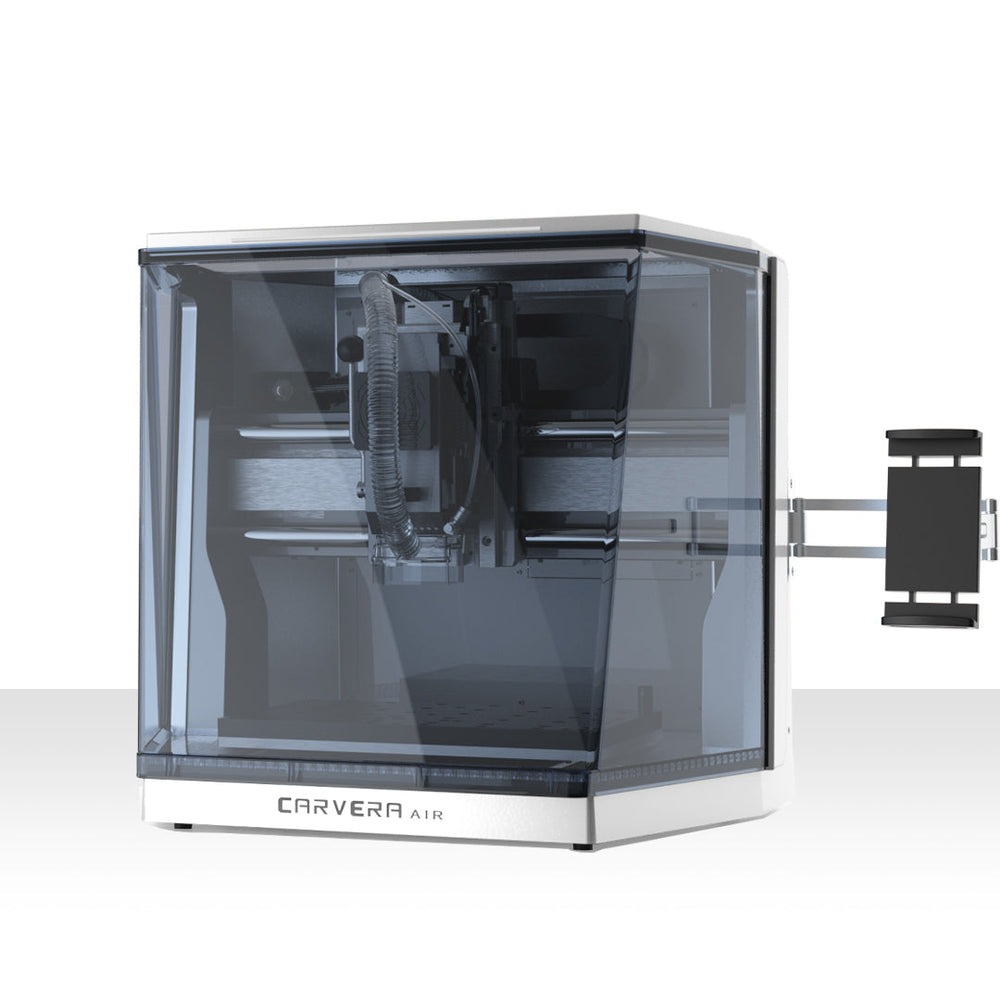

• Machine Type: Desktop CNC milling and engraving machine

• Axes: 3-axis standard, optional 4-axis rotary module

• Machine Footprint: 50 × 45 × 45 cm (19.7 × 17.7 × 17.7 in)

• Maximum Height (Lid Open): 84 cm (33 in)

Work Area

• 3-Axis Work Area: 30 × 20 × 13 cm (11.8 × 7.9 × 5.1 in)

• 4-Axis Work Area (Optional): Diameter 9.2 cm × Length 20 cm (Diameter 3.6 in × Length 7.9 in)

• Gantry Clearance: 12 cm (4.7 in)

Spindle

• Power: 200 W

• Speed: 0 – 13,000 RPM (closed-loop control)

• Runout Accuracy: < 0.01 mm (≈ 0.0004 in)

• Tool Holder / Collet: Standard 1/8 in; optional 1/4 in, 6 mm, 4 mm collets

Motion System

• Motors: Closed-loop stepper motors

• X/Y Axes: Linear shafts with ball screws

• Z Axis: Linear rail with ball screw

• Maximum Feed Rate: 4000 mm/min

Material Compatibility

• Wood: Hardwoods, softwoods, plywood, MDF

• Plastics: ABS, PVC, acrylic, polycarbonate, HDPE, foam, and more

• Composites: Carbon fiber, fiberglass, FR4 PCB

• Metals: Aluminum, brass, copper (light machining)

Software & Control

• CAM Compatibility: Supports common CAD/CAM programs

• Connectivity: USB and wireless control

• Operating System Support: Windows, macOS

Additional Options

• 4th-axis rotary module

• Laser engraving module

• Air-assist system

• Dust extraction attachment
