CREATBOT PEEK 300 LATEST VERSION ULTRA HIGH TEMP 3D PRINTER FOR PEEK AND ULTEM

Home
3D printers
CREATBOT PEEK 300 LATEST VERSION ULTRA HIGH TEMP 3D PRINTER FOR PEEK AND ULTEM

CREATBOT PEEK 300 LATEST VERSION ULTRA HIGH TEMP 3D PRINTER FOR PEEK AND ULTEM

Price:

$15,860.00

SKU:

19454943

Brand:

Creatbot

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

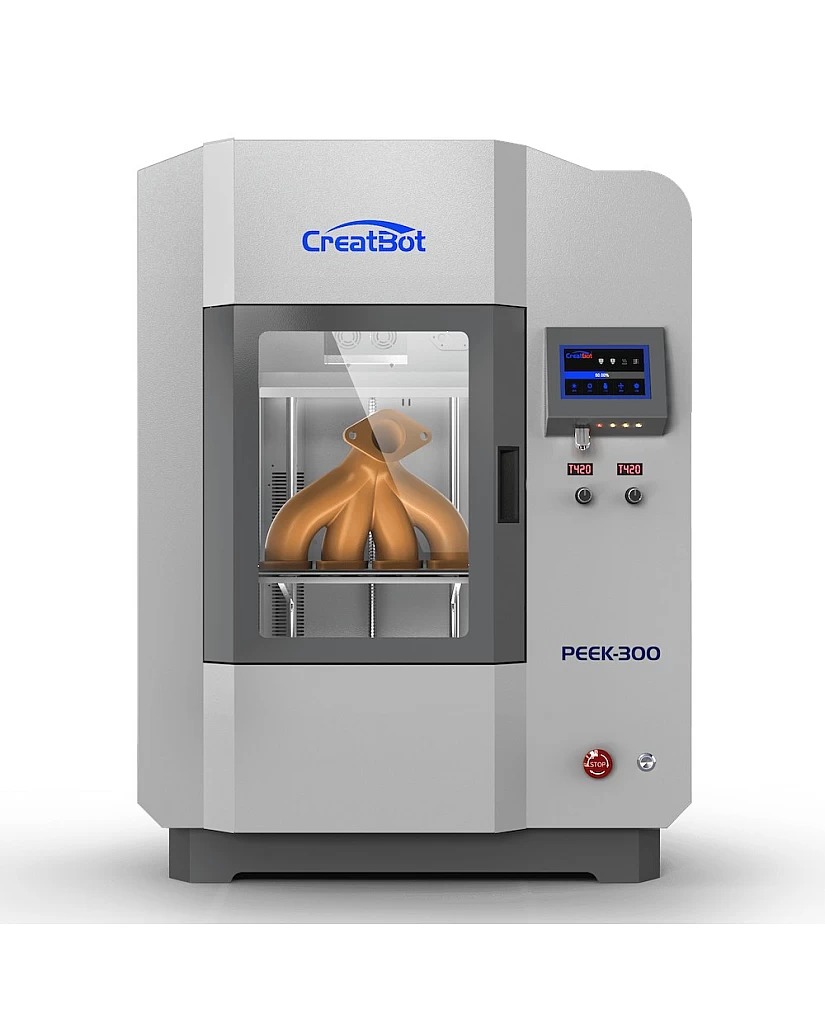

CREATBOT PEEK-300 (Latest Version) – Ultra High-Temperature 3D Printer for PEEK & ULTEM

The CREATBOT PEEK-300 (Latest Version) is an ultra high-temperature industrial 3D printer specifically engineered for printing PEEK, ULTEM™ (PEI), and other high-performance thermoplastics. Designed for precision, stability, and reliability, this advanced system meets the strict requirements of aerospace, medical, automotive, electronics, and industrial manufacturing applications.

Equipped with an all-metal hotend capable of temperatures up to 500 °C, a high-temperature heated bed, and a fully enclosed actively heated chamber, the PEEK-300 ensures optimal thermal control, excellent interlayer adhesion, and minimal warping when printing demanding materials. Its industrial-grade mechanical structure and high-precision motion system deliver exceptional dimensional accuracy and repeatability.

The latest version of the CREATBOT PEEK-300 features enhanced temperature stability, intelligent safety protection, and advanced control electronics, enabling continuous, long-duration printing of critical functional parts. The integrated HEPA and activated carbon filtration system ensures safe operation when processing high-temperature polymers.

Supporting materials such as PEEK, PEKK, ULTEM™ (PEI), PPSU, PSU, and carbon-fiber-reinforced composites, the CREATBOT PEEK-300 is a powerful solution for producing end-use parts, functional prototypes, and high-strength components that require outstanding thermal, chemical, and mechanical performance.

Product Specification

CREATBOT PEEK-300 – Technical Specifications

Printing & Build

Build Volume: 300 × 300 × 400 mm (single) / ~240 × 300 × 400 mm (dual)
Filament Diameter: 1.75 mm
Number of Nozzles: Dual extruders
Nozzle Diameter: 0.4 mm (optional 0.3 / 0.6 / 0.8 / 1.0 mm)
Layer Resolution: 0.04–0.4 mm
Print Speed: Best up to ~55 mm/s; Max up to ~150–180 mm/s
Positioning Accuracy:
• XY: ~0.011–0.0127 mm
• Z: ~0.00125–0.0025 mm

Thermal & Materials

Max Nozzle Temperature: Up to 500 °C
Max Heated Bed Temperature: 200 °C
Hot Chamber Max Temperature: 120 °C
Direct Annealing System (DAS): 0–400 °C controllable during printing to improve strength & reduce warping
Cooling System: Air pump cooling + liquid cooling for extruders

Supported Materials:
Engineering: PLA, ABS, ASA, PC, Nylon, PETG, PVDF.
High Temp: PPSU, PEI (ULTEM), PA12, PSU, PPS.
Ultra-Performance: PEEK, CF-PEEK (carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Software & Connectivity

Display: 4.3″ full-color touchscreen, multi-language
Connectivity: USB / USB Disk
Supported Software: CreatWare, Simplify3D, Cura, Slic3r
File Types: STL, OBJ, AMF, GCODE
Operating Systems: Windows, macOS, Linux (varies by slicer)

Special Features

Direct Annealing System (DAS): Instant, controllable annealing during printing
Filament Detection: Pause print when filament runs out
Power-loss Resume: Saves data and resumes on restart
Triple Heat Insulation: For better chamber stability
Emergency Stop: Safety stop switch included
