Product Description

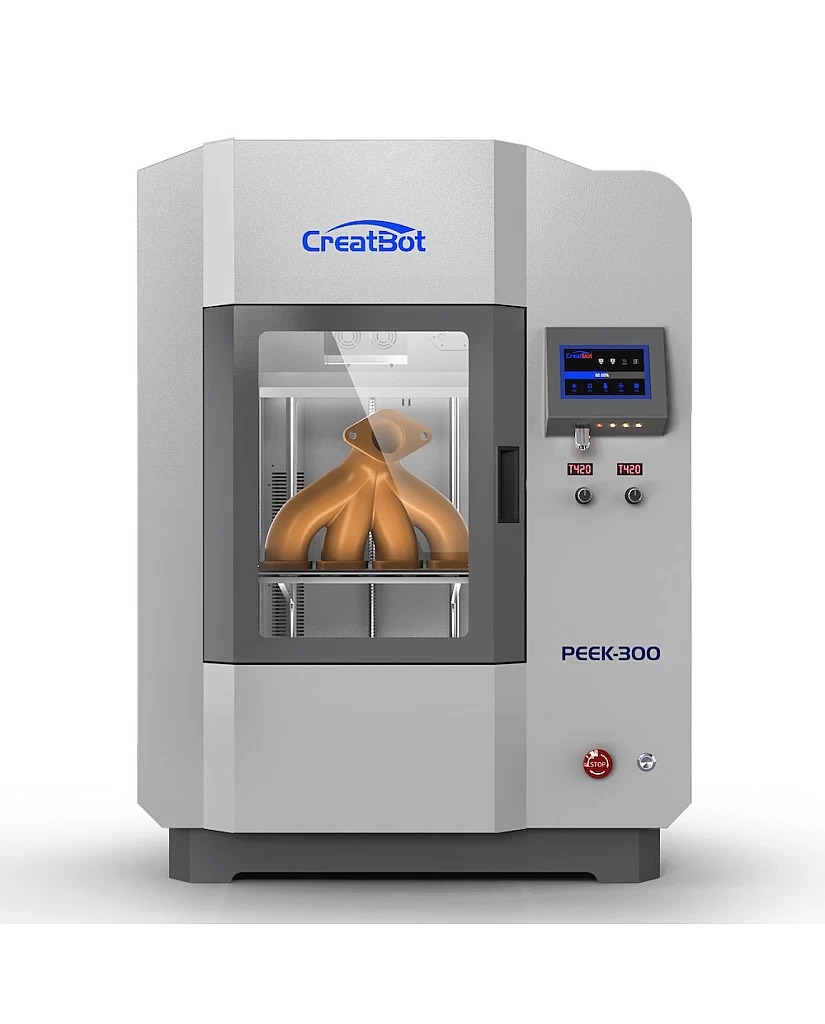

Creatbot PEEK 300 Professional 3D Printer

The Creatbot PEEK-300 is an FDM industrial 3D printer designed for printing with professional-grade materials, including PEEK and Ultem. It is equipped with engineering-grade components capable of withstanding high printing temperatures. Specifically, this dual extruder 3D printer sports ultra-high-temperature nozzles (500°C), a hot build chamber, a heated print bed, and high-temperature resistant motors, rails and belts. That’s why it ensures long-lasting, reliable performance over time. Despite its advanced features, it is sold at an affordable price for almost any company and organization.

The Creatbot PEEK-300 boasts a state-of-the-art controlled thermosetting technology and an efficient water cooling system, which relies on both circulating liquid cooling and air pump cooling. It features a triple heat isolation system composed of a double insulation chamber, insulation materials, and vacuum double PC boards. The self-developed patented Direct Annealing System (DAS) lets you control the annealing process on the fly. It minimizes warping and cracking issues, in particular when printing large-size functional parts. The Direct Annealing Temperature ranges from 0 to 400°C. The printer also includes a power-recovery system, a filament run-out detection sensor and an emergency stop switch.

Ideal for advanced manufacturing and research in medical, automotive, aerospace, and military applications, it is supported by industry leaders, such as Volkswagen Group, Bosch, Oxford University and NASA. Continue reading for a deeper review. Thanks to its patented DAS technology, Creatbot PEEK-300 delivers high-quality prints with smooth surfaces and fine details.

Main features:

  • High-performance industrial printer
  • Compatible with high-temp filaments
  • Triple Heat Isolation
  • Effective liquid cooling system
  • Patented Direct Annealing System




Product Specification

Printing Specifications
Print size ( X Y Z ) Single Extrusion: 300*300*400 mm, Dual Extrusion: 240*300*400 mm
Print Speed 55 to 180 mm/sec
Layer Resolution 0.02mm
Print Precision (Layer Thickness) 0.02mm
Filament Diameter 1.75mm
Nozzle Diameter 0.4mm (0.3~1.0mm optional)
Filament Compatibility Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF,TPU,Carbon Fiber; High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM); Ultra-performance material: PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.
Mechanical Specifications
No.of Extruders Single/Dual
Software Specifications
3D Printing Software Creatware, Simplify3D, Cura, Slic3r
Supported File Formats STL, OBJ, AMF, Gcode
Operating System Windows, Linux,Mac OS
Temperature Specifications
Extruder Temperature 480℃
Electrical Specifications
AC Input 200V~240V, 20A
Power Requirements 4600W
Connectivity (Interface) USB Connectivity/USB Disk
Shipping specifications
Machine weight 100 kg
Shipping box weight 145 kg
Machine Dimensions 650*600*750 mm
Shipping box dimensions 820*720*1080mm
