Roland DWX-4W Wet Dental Mill

DWX-4W Wet Dental Mill

• Precision milling of glass ceramics and composite resin
• Jäger DentaDrive spindle operates at 60,000 RPM
• 4-axis lead/worm screw driven machining that supports undercuts
• 4-station automatic tool changer
• Multi-pin clamp allows milling of three different pin-types
• Features automatic calibration and diagnostic notification system for unattended, worry-free milling

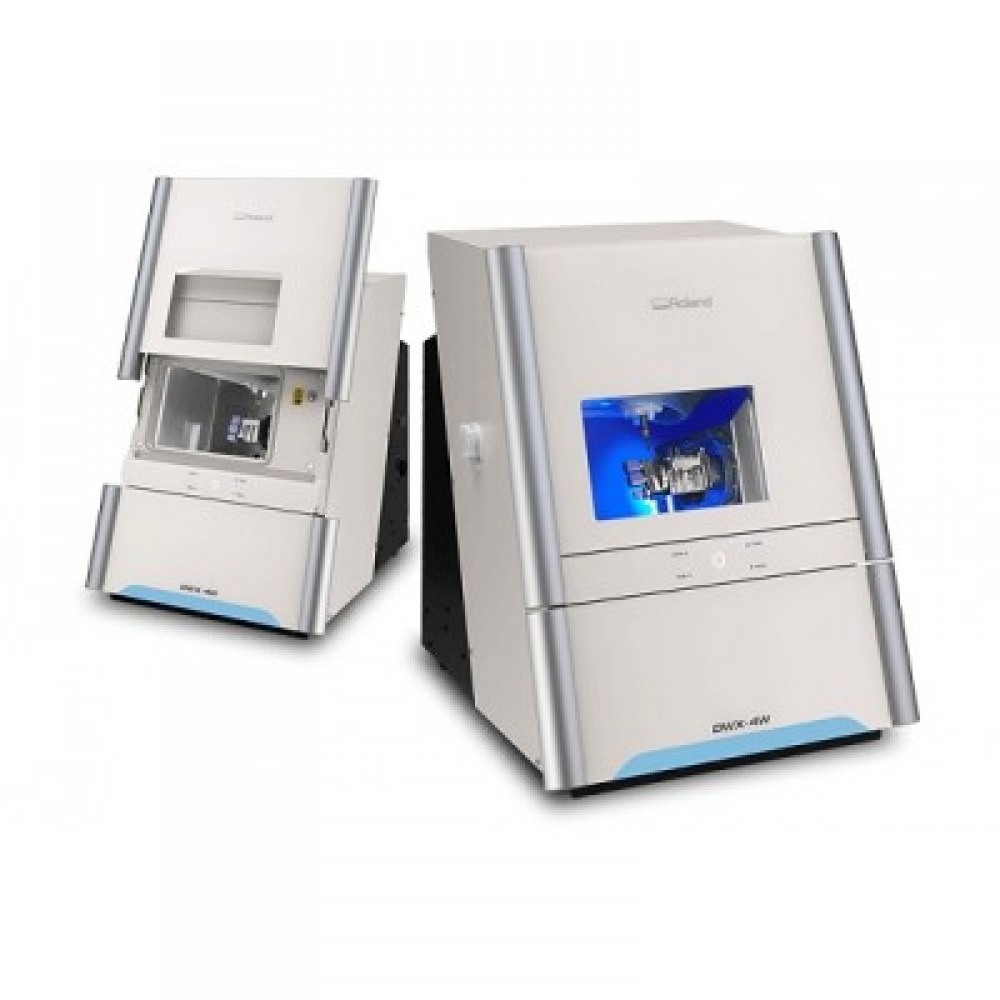

Roland DG now offers a wet-milling device for the precise and uncomplicated production of glass ceramics and composite resins. The DWX-4W produces crowns, bridges, inlays and onlays, and veneers at high-speed with its Jaeger DentaDrive spindle and simultaneous 4-axis milling and offers unattended milling convenience and increased efficiency with the option of loading up to three standard pin-type blocks at a time. Featuring Roland DG's famous reliability and product support, it's the ultimate in affordable and dependable milling technology.



Reliable High Performance

In addition to milling on X, Y and Z axes, the DWX-4W rotates pin-type blocks 360 degrees on a fourth axis (A axis) to support undercuts. The ball screw-driven 4-axis control allows for smooth, high-precision machining. The DWX-4W's high-performance 60,000-RPM Jaeger spindle is known for its reliability and supports precision milling of glass ceramics and composite resin. With its multi-pin clamp, the DWX-4W is a wet dental milling machine that can mill up to three different pin-type materials continuously in one operation. As a result, prosthetics for up to three different patients can be produced in a single production run, saving time, labor and costs.



Distinguishing Features

• High-performance 60,000-RPM Jaeger DentaDrive spindle
• Combines ball screw-driven 4-axis milling with simple one-button operation
• Multi-pin clamp mills up to three different pin-type materials at a time
• 4-axis simultaneous milling to support undercuts
• 4-station Automatic Tool Changer (ATC) to change burs without interruption



CAM Software Included

Purchase of the DWX-4W includes open-architecture CAM software that accepts all STL file types and supports the milling of relevant materials. This easy-to-use software features a user-friendly interface and simple workflow that promotes a short learning curve. Its features include automatic nesting and placement options to help maximize efficiency and pre-defined milling procedures for direct software-to-mill functionality without interruption during tool path calculation.
