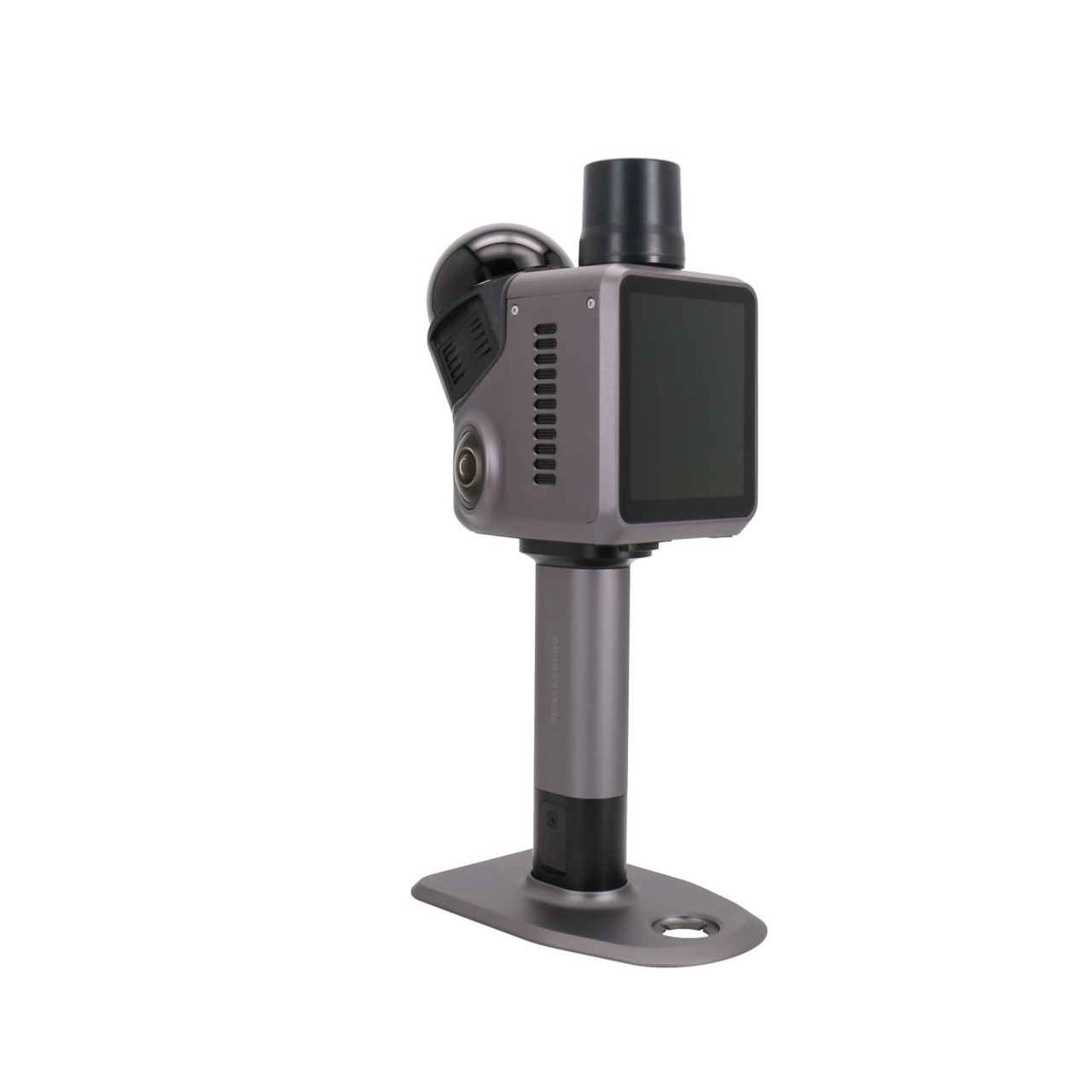

3DMakerPro Hawk Professional Handheld 3D Scanner

3DMakerPro Hawk Professional Handheld 3D Scanner

Price:

$8,750.00

SKU:

194599503

Brand:

3DMakerPro

Condition:

New

Weight:

2.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

3DMakerPro Hawk Professional Handheld 3D Scanner

The 3DMakerPro Hawk takes 3D scanning to the next level with LiDAR-based precision and real-time visualization. Built with advanced optics, an AMOLED display, and a powerful processing core, it turns real-world scenes into detailed digital models with unmatched clarity and efficiency.

Key Features

LiDAR-based spatial scanning with up to 140 m range
Accuracy of 1.5 cm at 10 m and 5 cm at 40 m
13 MP dual camera with NIR visual tracking system
3.9" AMOLED display with real-time visualization
IP65-certified waterproof all-metal housing
Powerful 8-core 2.4 GHz processor and 12,000 mAh battery

Product Specification

Scan Technology: Solid-state LiDAR with dual-camera visual tracking
Accuracy: ±1.5 cm at 10 m, ±3 cm at 20 m, ±5 cm at 40 m
Scan Speed: 480,000 points per second
Maximum Scan Distance: 40–70 m depending on surface reflectivity
Maximum Coverage Range: Up to 140 m under optimal conditions
Field of View (FOV): 360° horizontal, 63.5° vertical
Light Source: 905 nm LiDAR, Class 1 eye-safe
Texture Capture: Dual 13 MP color cameras with 1-inch sensors, plus NIR tracking camera
Device Dimensions: 120 × 145 × 85 mm
Weight: 900 g (approximately 1.98 lb)
Construction: Rugged metal housing with IP65 dustproof and splash-resistant rating
Power System: 12,000 mAh removable battery grip for mobile scanning
Connectivity: Dual USB-C ports and wireless data transfer support
Output Formats: Point cloud data compatible with standard 3D processing software
Recommended Uses: Architecture, construction, surveying, industrial inspection, reverse engineering, environment mapping, digital-twin creation
Operating Mode: Handheld or stationary capture with stable visual-LiDAR hybrid tracking
