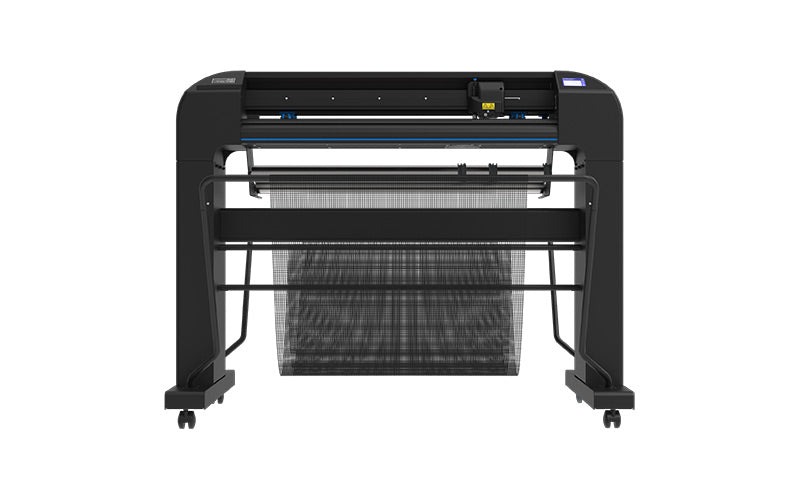

Summa S3 T75 30in Vinyl Cutter

  • Summa S3 T75 30in Vinyl Cutter
Price:
$6,999.00
SKU:
194570808
Brand:
Condition:
New
Weight:
152.00 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

Summa S3 T75 30in Vinyl Cutter

Thanks to Summa's True Tangential™ cutting head, the S Class 3T Series vinyl cutters deliver the cutting precision of a flatbed while providing the ease and speed of a roll-fed cutter.

The highly engineered tangential cutting heads on the S Class 3T Series have a unique motorized knife, allowing the cutters to achieve unparalleled accuracy and precision down to the smallest details. The True Tangential cutting technology even handles heavy sandblasts, paint masks, and reflective materials.

Elevating efficiency, the Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, for example, set to 18in, all objects within this range are cut at once.

Included with the machine is the powerful Summa GoSign software. GoSign allows you to manage your preferred workflow straightforwardly and with great flexibility.

As the smallest roll cutter in the S3 series, the Summa S3 T75 is thoughtfully designed to cater to every user's needs, from beginners to seasoned professionals. With the capability to handle media up to 29.2in (+2.8in in oversized mode), it is perfectly tailored for flex and flock users, as well as label-cutting professionals.


Product Specification

MODEL Summa S3 T75
CUT TYPE True Tangential with Drag Knife Cutting Mode Capability
CUT WIDTHS 29.2 in. (74.2 cm) (Oversized Mode: +/2.36 in)
CUT SPEED All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal
ACCELERATION Up to 4.25 G diagonal
ACCURACY 0.2 % of movement or 0.010 in, whichever is greater
TRACKING PERFORMANCE 40 ft max. within guaranteed specifications for media less than 30 in wide
CUT FORCE Up to 1000 grams of cutting force
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
CONNECTIVITY USB; Ethernet, Wifi
POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
DIMENSIONS 55.5 (W) x 27.2 (D) x 43.7 (H) in. 141 (W) x 69 (D) x 111 (H) cm
SHIPPING WEIGHT 152 lbs (69 kg)
OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, T Pen holder, 1 Ball point pen, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
WARRANTY (USA) Two-year parts and labor limited warranty, toll-free technical support
