aeoon Kyo Series DTG Printer
Product Description

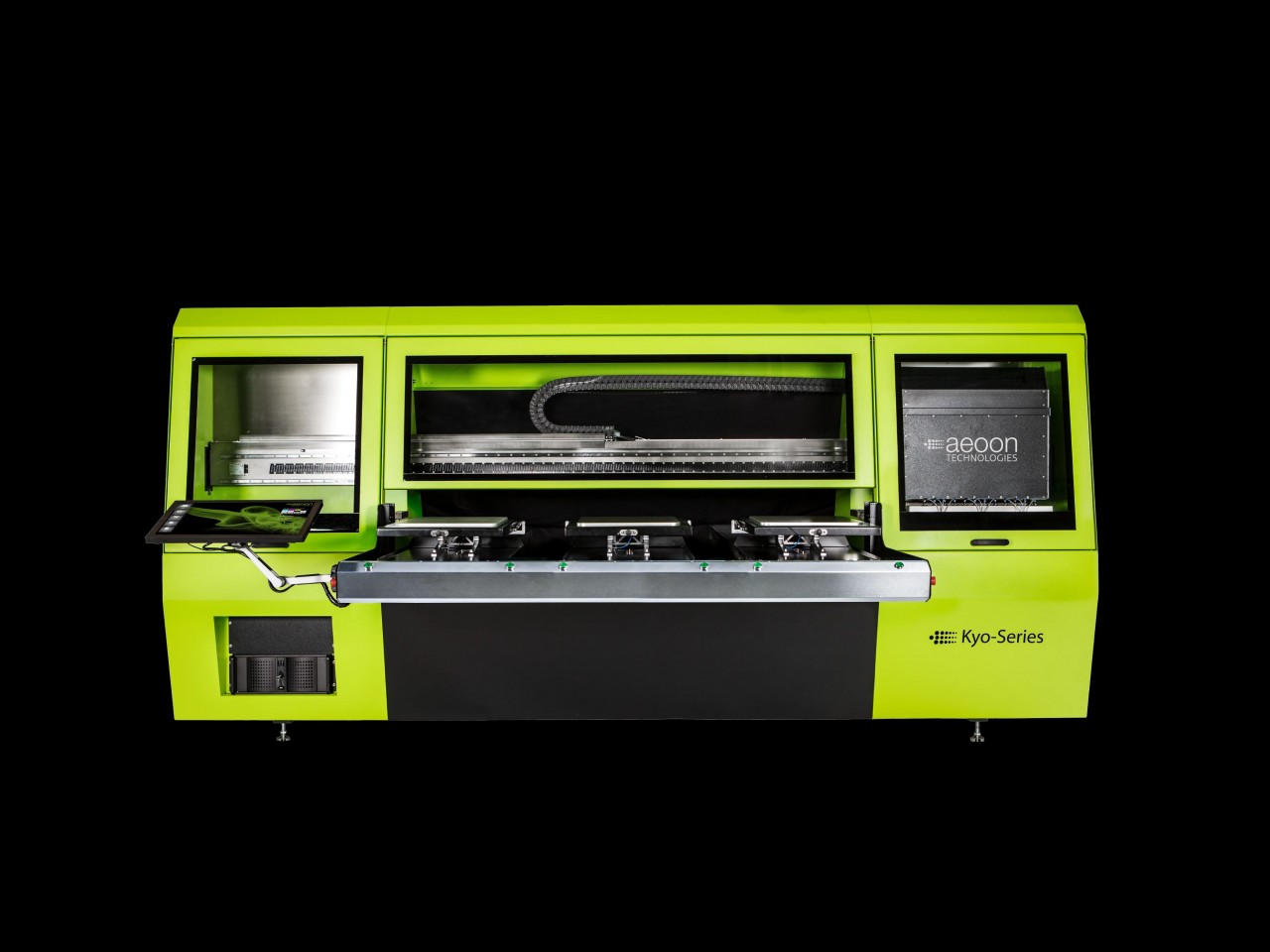

aeoon Kyo Series DTG Printer
The aeoon Kyo Series DTG printer is a high-end and industrial-grade digital direct-to-garment printer. The aeoon Kyo is known for its fast-printing speeds, allowing for rapid production of large quantities of printed textiles in sizes of up to 200 x 98 cm. It can handle both small and large print runs efficiently, and it is easy to integrate into an automated production workflow.
Built with durable construction and reliable components, the aeoon Kyo printer is designed to withstand demanding industrial environments and ensure long-term performance. The aeoon Kyo Series printer can be equipped with up to 12 printheads, which allows the use of additional spot colors to achieve wider color gamut and higher color accuracy.
aeoon RIP software
The RIP software used for aeoon DTG printers enhances the printing process by improving color accuracy, image quality, and overall efficiency. Users can control and adjust various printing parameters and benefit from using multiple features:
- Color control
- White ink handling
- Job tracing and accounting
- Ink cost calculator
- XML-based, barcode controlled workflow for job automation
- Pallet organizer
- Port and Print queue managers
Software Add-ons
To produce exceptional output quality with excellent details, multiple software add-ons can be additionally installed:
- Expanded Color Gamut (CMYK to CMYK+RG)
- Color Tools: Named Color Space, Direct Channel Firing, Direct Color Editing, Color Book
- Profiling Tool 4 Color Edition (CMYK + W)
- Profiling Tool 6 Color Edition (CMYK + RG + W)
Product Specification
Cotton, synthetics, mixed fibers, canvas, wood, leather
Maximum print size:
Frame: with 2 or 3 print stations – 40 x 50 cm; ~ 16 x 20 in
Frameless: with 2 or 3 print stations – 60 x 90 cm; ~ 24 x 35 in
Flameless: with 1 print station – 200 x 98 cm; ~ 79 x 39 in
Printhead:
Kyocera KJ4B-QA
Printing resolution:
600 dpi up to 2400 dpi resolution
Supported operating systems:
Linux OS
Electrical Supply:
3 x 400/208 V + N + PE, 50/60 Hz (+/-5%)
Max. power input:
- Kyo: 8.5 kVA;
- Kyo PLUS: 8.5 kVA + 6.3 kVA
Interface:
OPC-UA and REST interface
RIP Software
aeoon RIP Software
Crash Prevention:
Integrated
Ink Types & Volume
Water based pigment ink, 10l Container for each color
Environmental conditions:
Temperature: 22 – 24°C; Humidity 50 – 80 % non – condensing
Compress Air Supply:
7 bar – Quality Class 5 (residual oil: 25mg/mÑ – residual dust: 40μm/ 10mg/mÑ – residual water +7 DTP /7.8 gm/m³)
Max. air consumption: 500L/min
Dimensions and Weight:
- Kyo Series: 410 x 290 x 200cm / ~ 161 x 114 x 79 in / 2000 kg / 4409 Ib
- Kyo Plus Series: 410 x 290 x 200cm / ~161 x 114 x 79 in / 2450kg / 5400 Ib
