Mimaki JV 200 160 Series 64in

Price:

$10,995.00

SKU:

194518744

Brand:

Mimaki

Condition:

New

Weight:

309.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

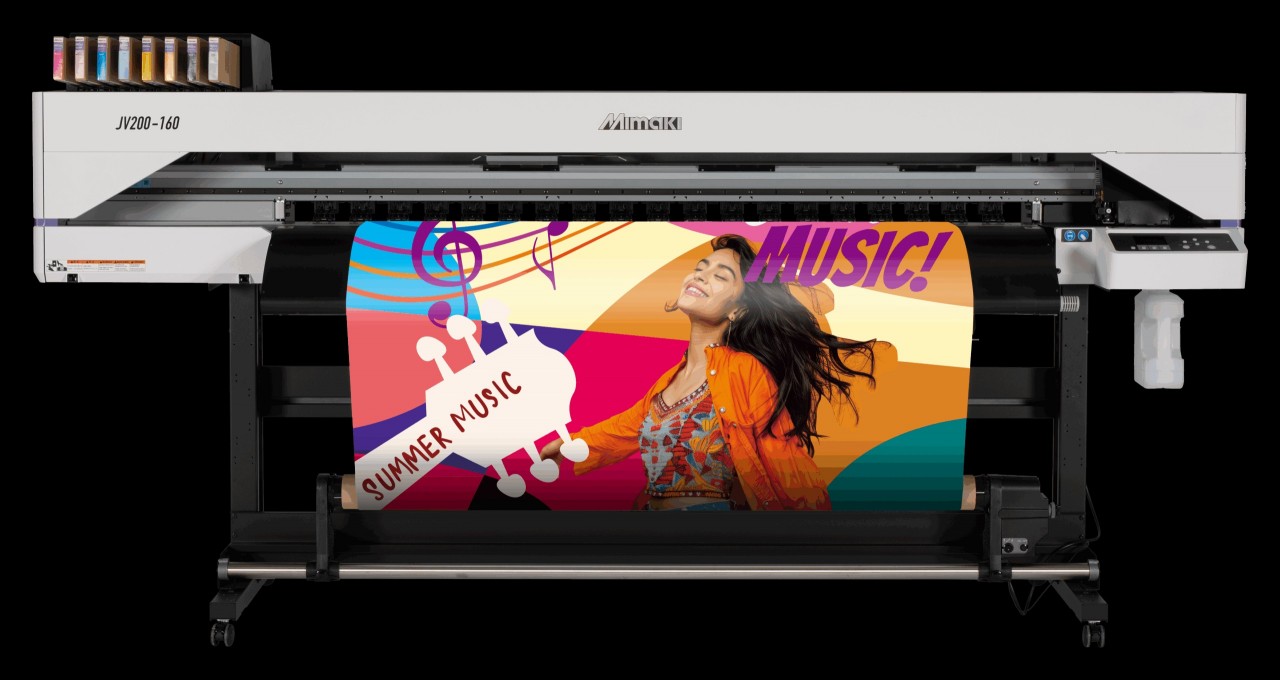

Mimaki JV 200 Series

The Mimaki JV200 Series is a high-performance roll-to-roll eco-solvent printer designed for signmakers and print shops that want exceptional print quality, fast production and easy operation. Built with the same advanced “330 Engine” print head technology found in Mimaki’s high-end models, the JV200 delivers superior image clarity, smooth gradients and consistent colour accuracy.

With print speeds up to 17 m²/h, the JV200 offers one of the fastest outputs in its class. It supports Mimaki SS21 and low-odour SS22 eco-solvent inks, delivering vibrant colour, excellent outdoor durability and reduced emissions—making it suitable for indoor and outdoor applications. Optional Orange and Light Black inks further expand the colour gamut and improve brand matching and skin tones.

The JV200 is available in 1600mm width and handles a wide range of media including vinyl, banner, film, canvas, wallpaper and more. Ideal for signage, vehicle wraps, posters, backlits, window graphics and POS displays, it gives you incredible versatility in one machine.

Designed for both new and experienced operators, the JV200 features user-friendly controls, easy maintenance, intelligent heater technology and stable media feeding. Paired with RasterLink RIP software, it offers smooth workflow control and accurate colour management.

If you’re looking for premium quality, productivity and reliability at an affordable price, the Mimaki JV200 is a smart investment for any professional print environment.

Product Specification

????️ Core Printing Specifications

Print Technology: On-demand piezo print head (single head)
Print Resolution: Up to 1200 dpi (600/900/1200 selectable)
Print Modes: High quality modes for sharp graphics and text
Printing Gap: Manual adjustable to 2 levels (1.5 mm / 2.0 mm)
Eco-Solvent Ink Options:
• SS22 series: C, M, Y, K, Lc, Lm, Lk, Orange
• SS21 series: C, M, Y, K, Lc, Lm, Lk, Orange
• BS4 series: C, M, Y, K (region dependent)
Ink Packaging:
• SS22 / SS21: 440 ml cartridges & optional 1 L/2 L bulk ink system
• BS4: 600 ml & 2 L packs (bulk require optional system)

???? Media & Print Size

Feature	JV200-130	JV200-160
Maximum Print Width	1,361 mm (≈ 53.6″)	1,610 mm (≈ 63.4″)
Maximum Media Width	1,371 mm (≈ 53.9″)	1,620 mm (≈ 63.8″)
Maximum Media Thickness	≤ 1.0 mm (≈ 0.04″)	≤ 1.0 mm (≈ 0.04″)
Max Roll Diameter	≤ 180 mm	≤ 180 mm
Max Roll Weight	25 kg (≈ 55.1 lb) (45 kg/99.2 lb optional)	25 kg (≈ 55.1 lb) (45 kg/99.2 lb optional)
Roll Core	2″ or 3″	2″ or 3″

????️ Connectivity & Interface

Interfaces:
• Ethernet 1000BASE-T (recommended)
• USB 2.0 Hi-Speed
Certifications: VCCI class A, FCC class A, ETL IEC 62368-1, CE (EMC/Low Voltage/Machinery/RoHS), CB, Energy Star, RCM, KC, REACH, UKCA
Power Supply: AC 100–120V / 200–240V ±10% ×2, 50/60 Hz
Power Consumption: Max ~1,320 W ×2; Sleep mode ~4.5 W

???? Physical & Environmental

Dimensions (W × D × H):
• JV200-130: ~2520 × 748 × 1370 mm (≈ 99.2″ × 29.4″ × 53.9″)
• JV200-160: ~2770 × 748 × 1370 mm (≈ 109.0″ × 29.4″ × 53.9″)
Operating Environment:
• Temperature: 20–30 °C (68–86 °F)
• Relative Humidity: 35–65 % (non-condensing)
Weight:
• JV200-130: ~130 kg (≈ 286.6 lb)
• JV200-160: ~140 kg (≈ 308.6 lb)
Optional: Level Foot attachment allows support of heavier media up to 45 kg (≈ 99.2 lb)
