Zebra ZD510 HC Wristband Printing

Home
Label Printer
Zebra ZD510 HC Wristband Printing

Zebra ZD510 HC Wristband Printing

Price:

$661.00

SKU:

194524675

Brand:

Zebra

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

ZD510-HC

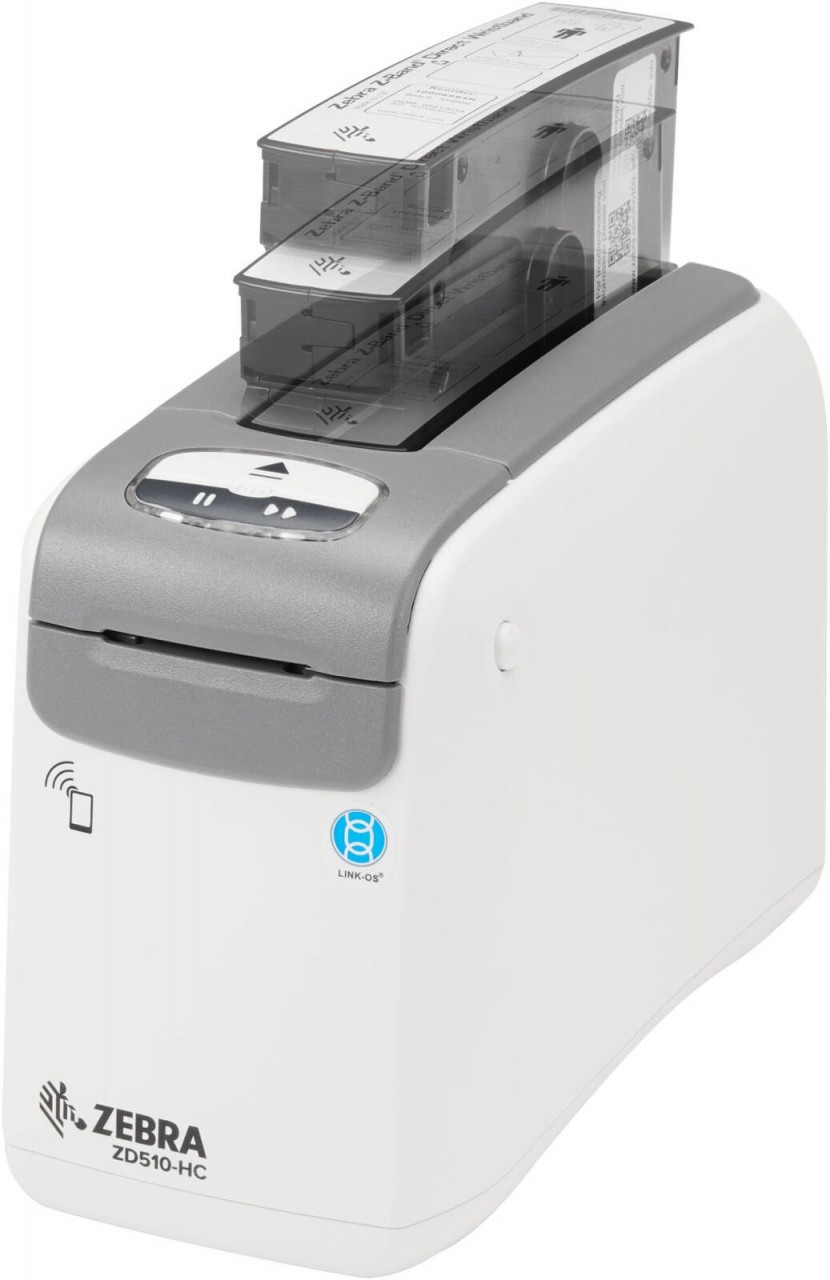

A Wristband Printer That Specializes in Healthcare

The ZD510-HC wristband printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market─Zebra's Z-Band® wristbands. Also capable of printing wristbands for amusement, water park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.

Key Features

Designed to Improve Safety and Data Security

Maximum Uptime with Comprehensive Remote Management Options

Easy-to-use — Virtually No Training Required

Compatible with leading ADT systems

Quick and easy wristband cartridge loading

Automatic print speed setting-up to 4 ips depending on the installed cartridge

Direct thermal printing of barcodes, text, and graphics

Dual-wall frame, impact-resistant plastic

ZPL or ZPL II programming language

512 MB Flash memory

256 MB SDRAM memory

Element Energy Equalizer- (E3-) for superior print quality

Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy

Odometer for print-length tracking

Illuminated media low/media out indicator

Product Specification

Physical Characteristics	Dimensions: 5 in. W x 7 in. H x 9.5 in. D (127 mm W x 178 mm H x 242 mm D)
Physical Characteristics	*Requires 6 in./153 mm clearance above printer to load cartridge
Printer Specifications	Maximum Print Length: 22 in./558 mm
	Minimum Print Length: 3 in./76 mm
	Print Widths: 0.75 in./19.05 mm, 1 in./25.4 mm, 1.1875 in./30.16 mm
	Resolution: 300 dpi/12 dots per mm
	Maximum Print Speed: Healthcare: 2 in./51 mm per second
	Z-Band Fun and Z-Band Splash: 4 in./102 mm per second
Media Characteristics	Healthcare Wristbands:
	- Adhesive or clip closure
	- Adult, child and infant sizes
	- Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay
	Hospitality Wristbands:
	- One-day and multi-day wristband options
	- Seven bright colors
	- Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts
	- Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud
Environmental (Printer)	Operating Temperature: 40° F to 104° F /4.4° C to 40° C
	Storage Temperature: -40° F to 140° F /-40° C to 60° C
	Operating Humidity: 20%-85% non-condensing R.H.
	Storage Humidity: 5%-85% non-condensing R.H.
	Cleaning: Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions. See zebra.com for a full list.
Environmental (Wristband Cartridge)	Service Temperature: -40° F to 140° F /-40° C to 60° C
Environmental (Wristband Cartridge)	Storage Temperature: 32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H.
Electrical	Universal power supply (PFC-compliant): 100—240VAC, 50—60Hz
Electrical	ENERGY STAR qualified printer
Agency Approvals	Emissions: FCC Part 15, Subpart B, VCCI, RCM
	Emissions and Susceptibility (CE): EN 55032:2012 class B and EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015
	Safety: CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL
	Power Supply: IEC 60601-1:2012
Options And Accessories	ZBI 2.0™: Factory- or field-installed, this powerful programming language lets printers run standalone applications, connect to peripherals, and much more
	Factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1
	Font packs: Asian and other international font kits
