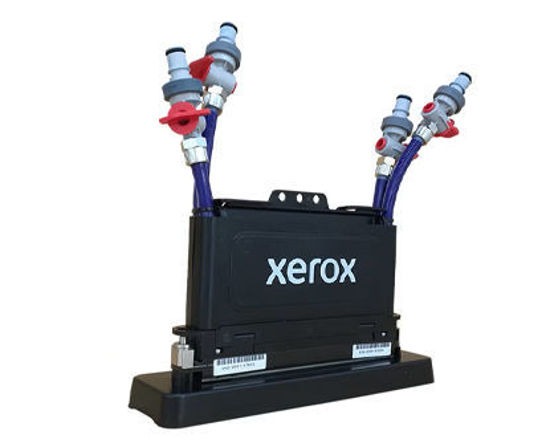

W Series 2 Color Printhead UV 64kHz
SKU:
194595128
Brand:
Condition:
New
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description
This Xerox® W-Series 80kHz Printhead family brings to market an industry-leading 5,544 jets in a compact printhead design combining high resolution, increased operating frequencies and a generous print width to maximize quality and efficiency for UV applications.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Specification
Specifications
- Ink compatibility: uv inks
- Number of addressable jets: 5544
- Rows of nozzles: 24
- Columns of nozzles: 231
- Nozzle spacing: 21.2 (1200 npi)
- Effective print width (single) : 115.00
- Total print width (outside) : 119.60
- Drop size: 3.2 pl
- Jet Straightness, 1 Sigma: ≤5 mrad
- Nominal drop velocity: 10 m/s
- Operating frequency: max 80 kHz
- Operating temperature: max 60°C (140 F°)
- Fluid viscosity : 3 to 7 cP
- Fluid surface tension : 25 to 50 dyne/cm
- Maximum operating frequency: 43 kHz
- Dry Weight : 386 grams (13.6 oz)
- Wet Weight : 412 grams (14.5 oz)
