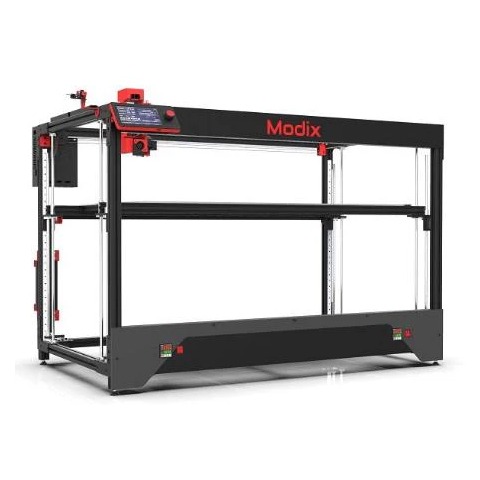

Modix BIG 120X V4 3D Printer

Modix BIG 120X V4 3D Printer

Price:

$8,960.00

SKU:

194560122

Brand:

Modix

Condition:

New

Weight:

374.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Modix BIG 120X V4 3D Printer

Modix BIG-120X printer was first introduced in late 2018. Similar to BIG-60, it has all the latest components of generation 4 and enjoy the same level of modular offering to better match your needs and budget

If you’ve been locked to a single configuration before, the Modix BIG-120X V4 3D Printer’s modular design solves that issue. Its unique customization options allow you to tailor the machine specifically to your project's demands, whether you need multi-material capabilities or enhanced Z-axis stability for intricate models.

This flexibility makes it a cost-effective solution for growing businesses and workshops. As your needs evolve, you can upgrade your machine piece by piece. The Modix BIG-120X V4 3D Printer provides an adaptable, future-proof platform, ensuring your investment continues to deliver value long after its initial purchase.

Generation 4 - Technical Specification (all models):

Generation 4 widens Modix’s offering by introducing new capabilities such as printing models with internal geometries, faster printing speed, reduced post process time and higher reliability.

General Information

Printing Technology – FFF (Fused Filament Fabrication)
Delivery – Self-assembly kit. Assembly guide includes easy to follow videos and online 3D models that can be rotated and zoomed.
Unified Core concept- All our printers share the same core design based on Modix BIG-60 V4.0.
Upgrade – New versions are designed with backward compatibility in mind. Owners of Modix’s printers enjoy upgrades from time to time in both configurations and hardware.

Chassis & Enclosure

Solid 40X40 T-slot aluminum profiles
Powder coated laser cut aluminum brackets and joints
Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP). Enclosure is an optional add-on for BIG-60, BIG-120X & BIG-120Z and a default option for BIG-Meter and BIG-180X.

Electronic Controller

Duet 2 WiFi, a powerful 3D Printer controller made in the UK. Duet is a well known and widely supported electronic platform for professional 3D printers. It is made by a respectful company and it is a major factor in our ability to provide ongoing high level of quality and reliability.

Powerful 32 Bit Processor
Dedicated WiFi module with external antenna
Quiet TMC2660 stepper drivers, up to 256 micro-stepping.
High speed uSD card and support for a second external SD card if required.
Dual extruders controlled on the main board, up to 5 additional stepper motor drivers are controlled on the DUEX expansion board.
High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A.
Access the printer via a PC, tablet or smartphone on a local network.
Set up and control your printer through the web interface.

Product Specification

Delivery: self assembly kit
Print volume: 1,200 X 600 X 640 mm (XYZ).
Machine Size (WxDxH): 1,556×1,060×1,506 mm
Shipping Weight: ~170 KG (depend on add-on selection)
Enclosure: Optional
IDEX – Secondary print head: optional
Z Axis Guides: Smooth rods, Hiwin rails – optional
Additional add-ons available below.
Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years, please select the desired extension below.
Shipping cost is a regional flat fee that should be selected at the bottom of this product page after you select the required components.
Ordering add-ons only (without a printer), will require an additional shipping fee.
