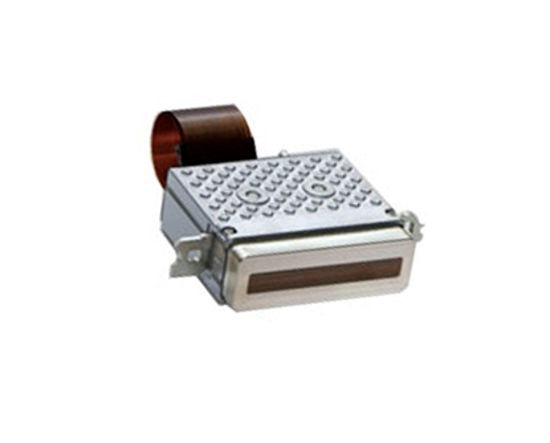

Toshiba CF1B Printhead

Price:

$2,264.00

SKU:

194592559

Brand:

Toshiba

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

This Toshiba CF1B printhead is suitable for printers such as Mimaki UJF-7151 Plus. This is the original Toshiba part number CF1B.

We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.

Specifications

Print Method: Drop on demand piezo
Print Width: 53.7mm
Number of channels: 636
Resolution: 300dpi / 84.5 micron
Grayscale level: 8-levels (0.5 - 7 dpd)
Drop Volume: 64 - 90pl
Maximum dot frequency: 4.8kHz (at max dpd)
Linear speed: 24m/min (at max dpd)
Driving voltage: 14 - 31V
Drop velocity: 7 - 9 (m/s)
Weight: 161g (185g with positionning plate)
Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
Jettable fluids: UV-curing, oil-based
This printhead carries a manufacturer warranty.
