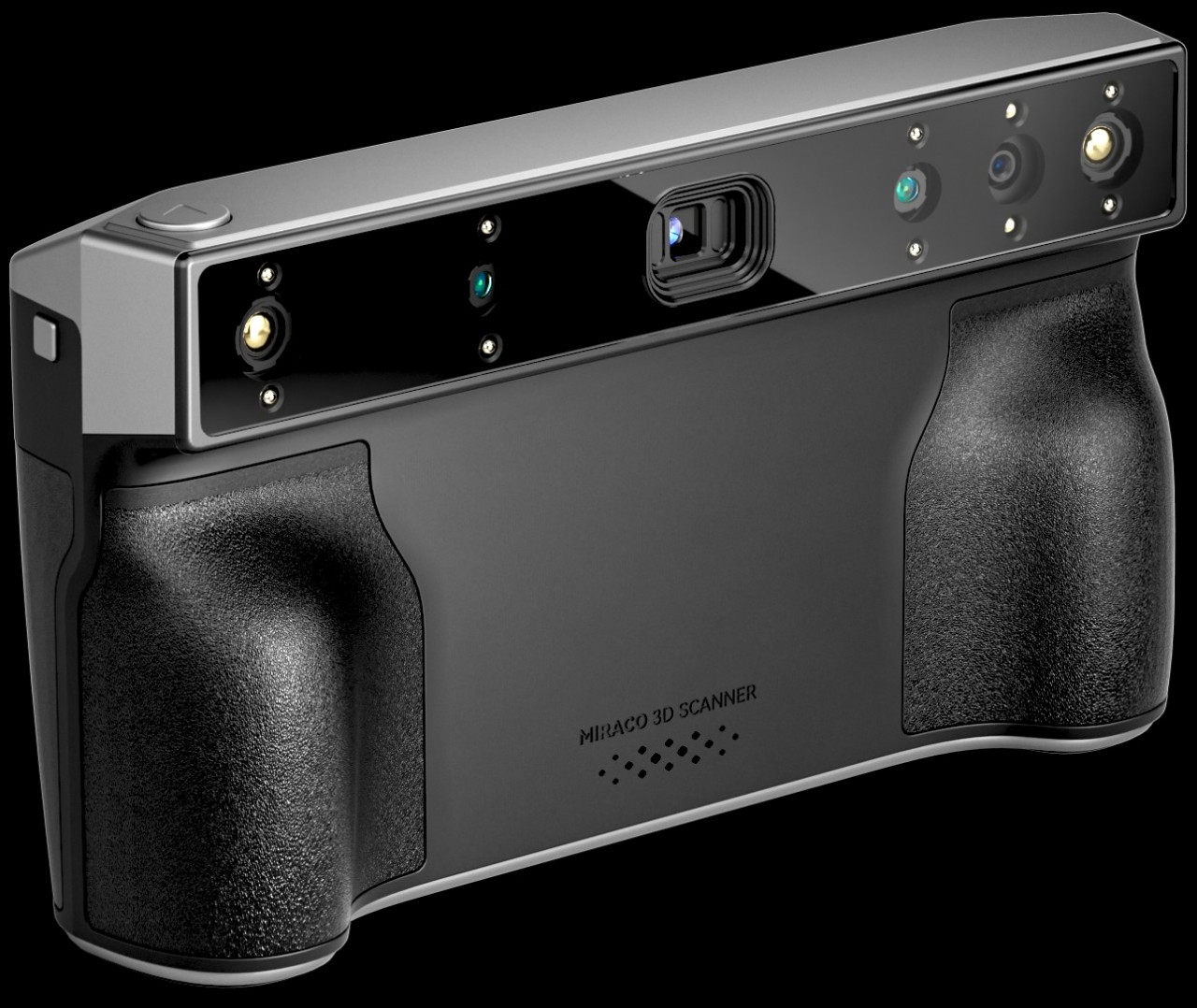

Scan Technology: Quad-camera infrared structured-light scanning with high-resolution RGB texture capture.

Single-Frame Accuracy: Up to 0.02 mm

Resolution / Point Distance: Up to 0.05 mm fused point spacing

Working Distance (scanner to object): 100 mm – 1000 mm

Minimum Scannable Object Size: 10 × 10 × 10 mm

Maximum Scannable Volume / Range: Up to 4 × 4 × 4 meters

Capture Area (at closest distance): approx. 28 × 53 mm

Capture Area (at far distance): up to 975 × 775 mm

Scan Modes: Single-shot capture and continuous scanning mode

Scan Speed: Up to 20 frames per second (fps)

Camera System: Depth camera (2 MP) + RGB camera (48 MP) for color/texture data

Onboard Processing Hardware: 8-core CPU (2.4 GHz), 32 GB RAM, 256 GB internal storage

Display: 6-inch 2K AMOLED touchscreen, with adjustable orientation

Power / Battery: Built-in rechargeable battery (5,000 mAh), approximately 2 hours of continuous use, supports fast charging

Connectivity: USB-C, Wi-Fi, wireless data transfer support

Alignment / Tracking Modes: Feature alignment, marker alignment, global-marker alignment — supports photogrammetric workflows for large or complex scans

Output File Formats: STL, OBJ, PLY, ASC, 3MF, GLTF, FBX — compatible with standard CAD, 3D modeling, printing, or VR/AR workflows

Physical Dimensions: 200 × 50 × 110 mm

Weight: 750 g (approximately 1.65 lb)

Use Cases: Suitable for small object scanning, product prototyping, medium to large object scanning, reverse engineering, heritage preservation, digital twin creation, VR/AR asset generation, and general 3D capture tasks
