RICOH fi 8820 Document Scanner

RICOH fi 8820 Document Scanner

Price:

$6,605.00

SKU:

194591620

Brand:

Ricoh

Condition:

New

Weight:

51.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

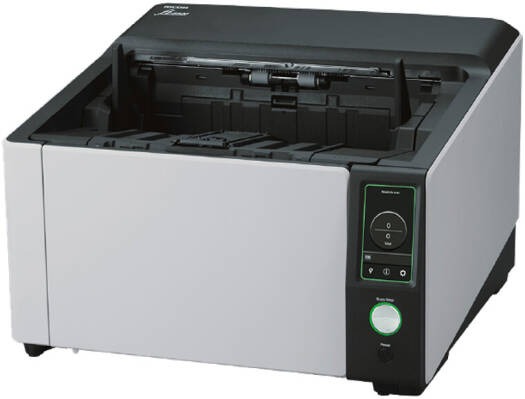

RICOH fi 8820 Document Scanner

The RICOH fi-8820 production scanner is purpose-built to deliver sustained performance, optimized throughput, and an efficient document workflow.

The RICOH fi 8820 is a high-performance A3 production document scanner designed for businesses that require fast, reliable, and continuous document digitization. It offers exceptional duplex scanning speeds, advanced paper-handling technology, and strong image-processing performance. With a large 500-sheet ADF, intelligent sensors to prevent paper damage, and a 4.3-inch touchscreen for easy operation, the fi 8820 ensures efficient workflow and minimal downtime. It is ideal for enterprises, service bureaus, government offices, and any environment that processes high daily volumes.

Product Specification

Product Name	fi-8820
Scanner Type	ADF (Automatic Document Feeder)/Manual Feed, Duplex
Scanning Speed (A4 Landscape)	Simplex: 120 ppm (200/300 dpi) Duplex: 240 ipm (200/300 dpi)
Scanning Speed (A4 Portrait)	Simplex: 95 ppm (200/300 dpi) Duplex: 190 ipm (200/300 dpi)
Image Sensor Type	CIS x 2 (front x 1, back x 1)
Light Source	RGB LED x 4 (front x 2, back x 2)
Optical Resolution	600 dpi
Output Resolution	50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format	Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors	White/Black (selectable)
Document Size (Max)	304.8 x 431.8 mm (12 x 17 in.)
Document Size (Min)	48 x 70 mm (1.9 x 2.8 in.)
Long Page Scanning	Up to 6,096 mm (240 in.) (200 dpi)
Paper Weight (Straight Scan)	Larger than A5 & up to A4: 20 to 570 g/m² (5.3 to 152 lb) A5 or Smaller & Over A4: 40 to 570 g/m² (11 to 152 lb) Envelope: 1.25 mm or less
Paper Weight (U-turn Scan)	Larger than A5 & up to A4: 20 to 209 g/m² (5.3 to 56 lb) A5 or Smaller: 64 to 209 g/m² (17 to 56 lb) Over A4: 64 to 256 g/m² (17 to 68 lb)
ADF Capacity	500 sheets (A4 80 g/m²) 500 sheets (A3 80 g/m²)
Expected Daily Volume	100,000 sheets
Multifeed Detection	Overlap detection (Ultrasonic sensor), Length detection
Paper Protection	Stapled Documents Detection, Lag detection
Interface	USB 3.2 Gen1/USB 3.0/USB 2.0/USB 1.1 Ethernet: 10BASE-T/100BASE-TX/1000BASE-T
Power Requirements	AC 100 to 240 V ±10%
Power Consumption	Operating: 70 W or less (40 W in Eco mode) Sleep Mode: 2.5 W or less Auto Standby: 0.2 W or less
Operating Environment	Temperature: 5 to 35°C (41 to 95°F) Humidity: 15 to 80% (Non-condensing)
Environmental Compliance	ENERGY STAR, RoHS
Dimensions (W x D x H)	460 x 430 x 315 mm (18.1 x 16.9 x 12.4 in.)
Weight	23 kg (50.7 lb)
Supported OS	Windows 11, Windows 10, Windows Server 2025/2022/2019/2016
Software/Drivers	PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin
Image Processing Functions	Multi-image output, Auto color detection, Blank page detection, Static/Dynamic threshold, Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color, sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streak reduction, Character extraction, Background pattern removal, Auto profile selection
Included Items	AC cable, AC adapter, USB 3.0 cable, Setup DVD-ROM
