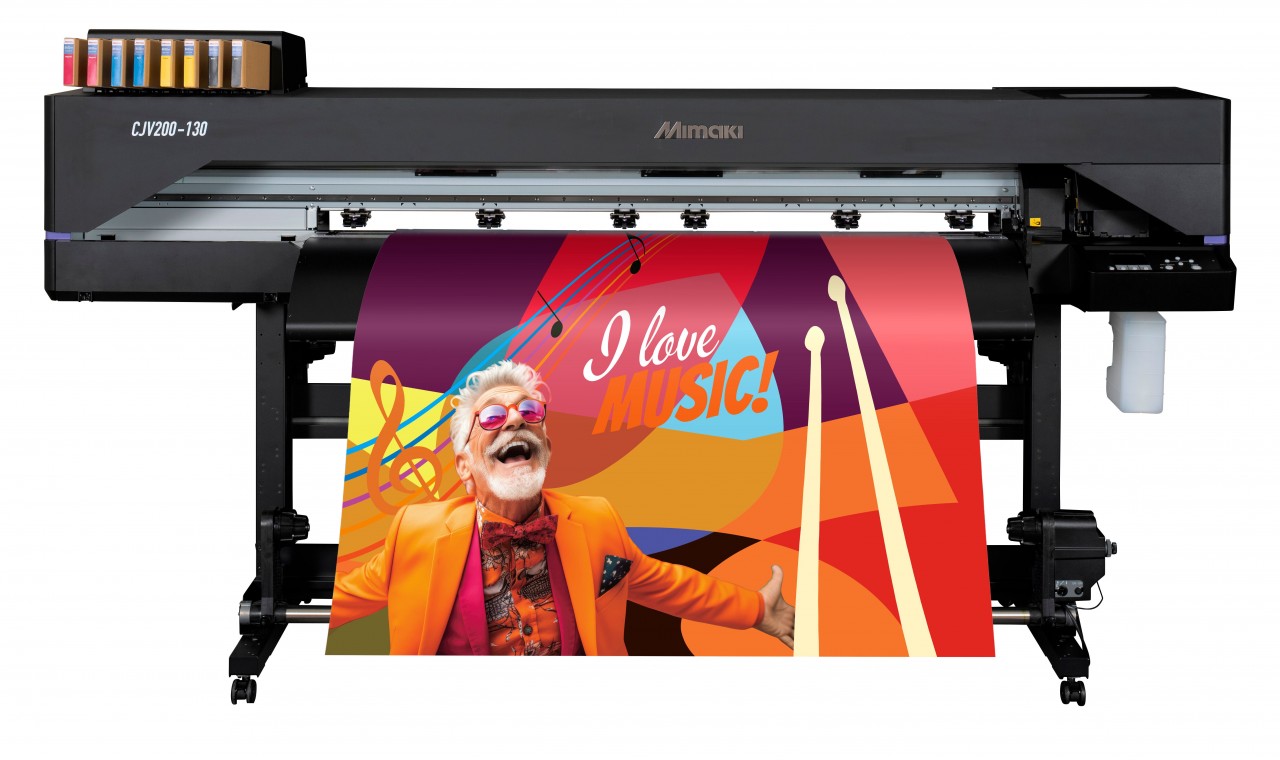

Loading... Please wait...The Mimaki JV200-130 Series 54in Eco Solvent Wide Format Printer is a high-performance professional printing solution designed for signage, banners, posters, and commercial graphic production. With advanced eco solvent printing technology, this robust machine delivers vibrant colors, sharp detail, and consistent output suitable for both indoor and outdoor applications.
Built for reliability and efficiency, the JV200-130 combines stable media handling with precise ink placement to ensure excellent image quality and smooth gradations across a wide range of materials. Whether you are producing large format advertisements, retail displays, or vehicle wraps, this printer offers the performance and durability needed for daily production environments.
User-friendly operation and efficient workflow features make the Mimaki JV200-130 Series ideal for print shops, advertising agencies, and professional graphic studios aiming for high-quality results with minimal downtime.
Professional Quality Output: Rich, vivid colors with smooth tonal transitions optimized for large format graphics.
Eco Solvent Technology: Durable prints with strong outdoor resistance and reduced odor.
Wide Format Capability: 54-inch print width supports versatile large signage production.
Reliable Performance: Stable media handling for continuous print jobs.
Easy Operation: Intuitive controls and workflow designed for productivity.
This printer is suitable for:
Indoor and outdoor signage
Advertising banners and posters
Window graphics and retail displays
Vehicle graphics and wraps
Commercial print production
The Mimaki JV200-130 Series is perfect for print service providers, marketing agencies, design studios, and commercial graphics businesses seeking a reliable, high-quality eco solvent wide format printing solution with professional results.
Print Technology: On-demand piezo inkjet print head (single head)
Print Resolution: 600 dpi, 900 dpi, 1200 dpi
Print Gap: Manual adjustable (2 levels: 1.5 mm / 2.0 mm)
Ink Type: Eco-solvent ink
Ink Options:
SS22 Series: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange
SS21 Series: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange
BS4 Series: Cyan, Magenta, Yellow, Black
Ink Capacity:
SS22: 440 ml cartridges and 1 L ink packs
SS21: 440 ml cartridges and 2 L ink packs
BS4: 600 ml ink packs and 2 L ink packs
Maximum Print Width: 1,361 mm (approximately 53.6 inches)
Maximum Media Width: 1,371 mm (approximately 54.0 inches)
Maximum Media Thickness: Up to 1.0 mm
Roll Diameter: Up to 180 mm
Roll Weight: Up to 25 kg (optional support up to 45 kg)
Roll Core Size: 2 inch and 3 inch
Interface: Ethernet 1000BASE-T (recommended) and USB 2.0 Hi-Speed
Power Supply: Single-phase AC 100–120 V / 200–240 V × 2, 50/60 Hz
Power Consumption:
Maximum: approx. 1,320 W × 2
Sleep Mode: approx. 4.5 W
Operating Temperature: 20–30°C
Relative Humidity: 35–65% (non-condensing)
Recommended Temperature: 20–25°C
Dust Level: Normal indoor environment
Dimensions (W × D × H): 2,520 mm × 748 mm × 1,370 mm
(approximately 99.2 in × 29.4 in × 53.9 in)
Net Weight: 130 kg
(approximately 286.6 lb)
VCCI Class A
FCC Class A
ETL IEC 62368-1
CE Marking (EMC, Low Voltage, Machinery, RoHS)
CB
Energy Star
RCM
KC
The Mimaki JV200-130 Series 54in eco-solvent printer is commonly used for:
Outdoor and indoor signage
Advertising banners and posters
Window graphics
Retail displays
Commercial large format graphics
