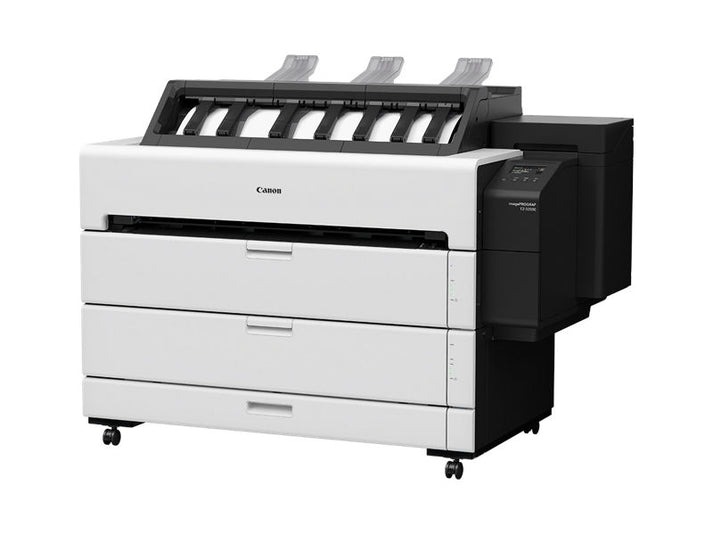

Canon imagePROGRAF TZ‑32000 | 36‑inch High‑Performance Large Format Printer

Home
Digital Printer
Canon ImagePROGRAF TZ 32000

Canon ImagePROGRAF TZ 32000

Price:

$14,355.00

SKU:

194584846

Brand:

Canon

Condition:

New

Weight:

613.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Canon ImagePROGRAF TZ 32000

productivity and efficiency for the low-end LED and high-end inkjet production CAD, engineering, government, and other markets. The TZ-32000 achieves the fastest printing speed of any Canon imagePROGRAF printer to date at up to 4-D prints per minute.

Designed with many “Canon First” technologies such as twin carriage motors, an integrated top stacker that utilizes an airflow system, and a dual-roll media system with intelligent media handling, this printer is a powerful addition to Canon’s portfolio of large format printers.

Product Specification

Main Unit Specs

Printer Type

5-Color 36-inch Printer

Technology

FINE (Photolithography Inkjet Nozzle Engineering)

Print Resolution (Max.)

2400 x 1200 dpi

Line Accuracy(1)

±0.1% or Less

Minimum Line Weight(2)

0.02 mm

Number of Nozzles

Matte Black:5,120 Nozzles
Other Colors:2,560 Nozzles per Color

Droplet Size

5 Picoliter

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Nozzle Pitch (Head Resolution)

1200 dpi x Two Rows

Ink Tank

Shipped with Printer:330ml MBK; 160ml BK, C, Y, M
Replacement:MBK/BK/C/Y:PFI-340(330ml)/PFI-740(700ml)
M:PFI-341(330ml)/PFI-741(700ml)

Ink Supply Method

Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System

Non-firing Nozzle Detection and Compensation

Printer Controller

L-COA PRO

Printer RAM

128 GB (Virtual) 2 GB (Physical)

Hard Drive

500GB (Encrypted)

Media Feed

Roll Feed:Two Rolls, Front Loading
Cut Sheet:Front Loading

Media Width

Roll Feed:8” – 36” (203.2 mm – 917 mm)
Cut Sheet:8” – 36” (203.2 mm – 917 mm)

Printable Margins

Roll Feed:All Sides: 0.12″ (3 mm) or 0″ for Borderless

Maximum Print Length (Single Page)(3)

Roll Feed:59′ (18 m)
Cut Sheet:24″ (610 mm)

Borderless Printing Widths (Roll Media Only)

Custom roll width 8” – 36” with micro margin technology

Media Cutter

Automatic horizontal rotary cutter

Media Thickness

0.07 mm – 0.8 mm

Media Core Size

2″ with 3″ Core Adapters Included

Maximum Roll Outer Diameter

6.9″ or less

Media Output

Front Output:Basket
Top Output:Stacker

Operating System

Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 14

Printer Language

SGRaster, HP-GL/2, HP RTL, PDF, JPEG, CALS G4

Interface

USB B Port
Type:Built-in (Hi-speed USB)
Mode:Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)USB A Port:Direct USB Thumb Drive Printing

Gigabit Ethernet
Type:Built-in
Standard:IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol:SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard:IEEE802.11n/IEEE802.11g/IEEE802.11b(4)
Security:WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Power Supply

AC 100 – 240 V (50 – 60 Hz)

Power Consumption

Maximum:Approx. 111 W
Standby:Approx. 1.6 W
Power Off:Approx. 0.1 W

Certifications

International ENERGY STAR® Program (WW), TUV, CB, EPEAT Gold®

Operational Environment

Temperature:59° F – 86° F (15° C – 30° C)
Relative Humidity:10 – 80% (No Condensation)

Printer Dimensions

(W x D x H):60.9″ x 37.8″” x 46.8″
Weight:454.2 pounds (Approx.)

Package Dimensions
