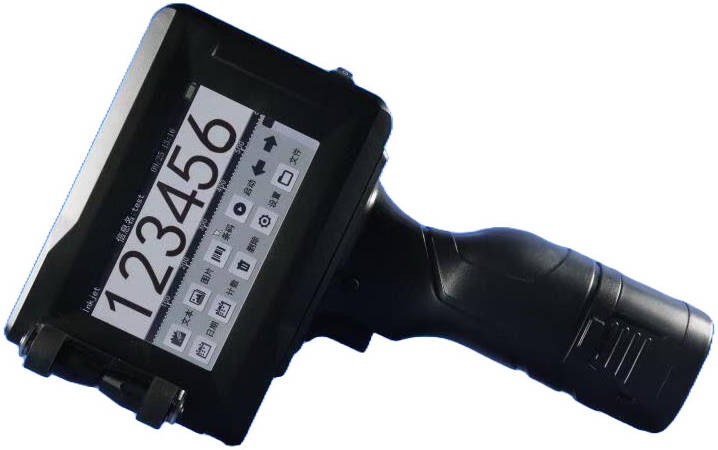

ABM PF160 Handheld Printer

The ABM PF160 is a portable industrial handheld printer designed for direct printing on a variety of surfaces such as cartons, pipes, cables, metal, plastics, and other materials in production lines or warehouses.

Key Features

• 5-inch capacitive touchscreen for easy and intuitive operation.

• CORTEX-A7 processor + 3 GB RAM with Linux OS, ensuring stable and fast printing performance.

• 1–8 adjustable printing lines, suitable for various product marking needs.

• Print height: 2 mm – 12.7 mm, flexible for text, codes, and symbols of different sizes.

• 360° printing direction, adaptable to workpiece orientation on the production line.

Printable Content

Can print:

• Text & dates

• Logos & images

• QR codes, Data Matrix (DM), barcodes

• Variable content such as 1D & 2D text

File Formats & Language

• Supports TXT & XLSX files and BMP images

• Interface language can be changed (e.g., English, Chinese, Arabic, Russian, Japanese, etc.)

Connectivity & Integration

• USB and RS232 ports for connection to computers or other systems

• Supports electric eye sensors or synchronizers for automatic production line printing

Performance

• Printing speed up to 60 m/min

• Low power consumption, average < 5 W

Ink & Capacity

• Fast-drying, eco-friendly inks available in black, white, red, blue, yellow, green, and invisible ink

• Ink cartridge ±42 ml, typically printing up to ≈800,000 characters

Material & Durability

• Durable ABS body, portable for on-site use

• Suitable for printing on carton, pipes, cables, metal, plastic, electronics, and more

• Dimensions & Weight

• Dimensions: 140 mm × 100 mm × 240 mm

• Net weight: ≈0.996 kg, lightweight for handheld use

Ideal for: manufacturing, warehousing, production labeling, batch/date coding, and fast printing on diverse material surfaces.
