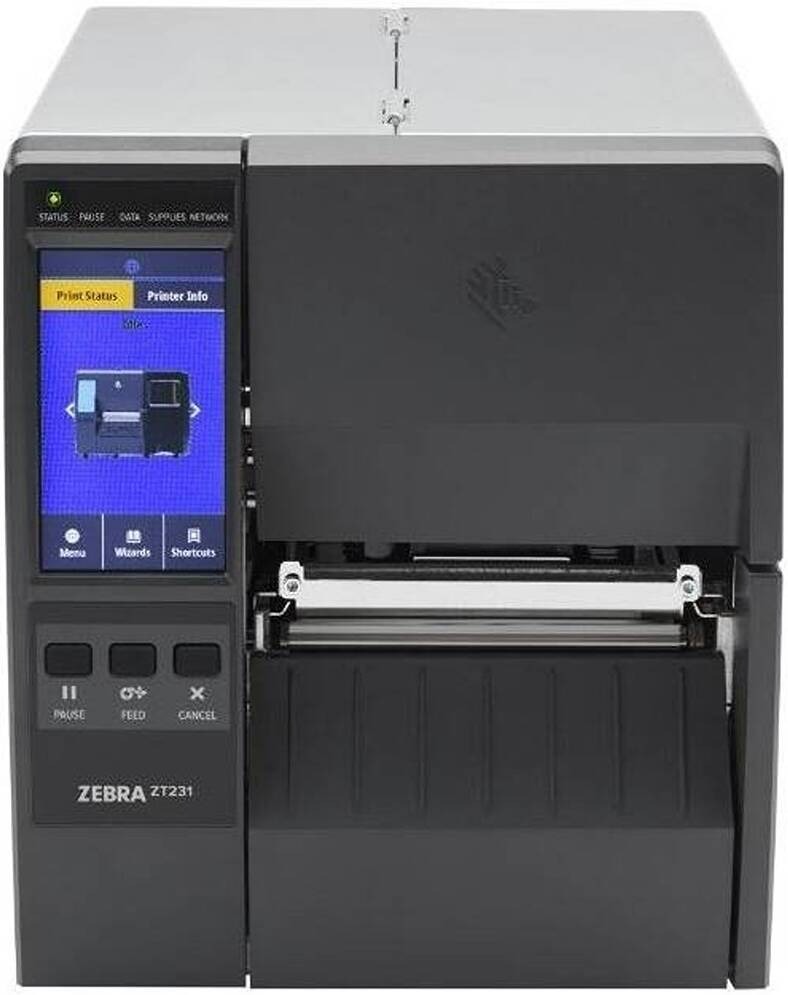

Zebra ZT231 Barcode Label Printer
Product Description
Zebra ZT231 Barcode Label Printer is a reliable and efficient industrial label printer designed to meet the barcode and labeling needs of medium-scale business and industrial environments. It utilizes thermal transfer and direct thermal technology, delivering durable, high-quality label prints.
The ZT231 provides high-speed printing with consistent precision, making it ideal for product labeling, inventory management, and logistics applications. It supports a wide range of label sizes and media types, offering flexibility for retail, warehouse, and manufacturing labeling needs.
Featuring a compact design, user-friendly interface, and flexible connectivity options including USB and Ethernet, the Zebra ZT231 easily integrates into inventory management systems and business workflows. The Zebra ZT231 Barcode Label Printer delivers the reliability, efficiency, and professional print quality required for modern business operations.
Product Specification
| Physical Characteristics | |
| Dimensions | 17 in. L x 9.5 in. W x 11 in. H (432 mm L x 241 mm W x 279 mm H) |
| Weight | 20 lbs./9.1 kg |
| Printer Specifications | |
| Resolution | 300 dpi/12 dots per mm |
| Memory | 256 MB SDRAM, 256 MB on-board linear Flash memory |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed | 8 ips (300 dpi) |
| Media Sensors | Moveable transmissive and reflective sensors |
| Maximum Print Length | 203 dpi: 157 in./3988 mm, 300 dpi: 73 in./1854 mm |
| Media Characteristics | |
| Minimum Label and Liner Length | Tear mode: 0.7 in/18 mm, Cutter mode: 1 in/25 mm, Peel mode: 0.5 in/13 mm |
| Media Width | 0.75 in./19.4 mm to 4.50 in./114 mm |
| Media Roll Size | 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core, 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core |
| Media Thickness | 0.003 in./0.076 mm to 0.010 in./0.25 mm |
| Media Types | Continuous, die-cut, notch, black mark |
| Ribbon Characteristics | |
| Standard Length | 1,476 ft./450 m |
| Width | 2 in./51 mm to 4.33 in./110 mm |
| Core | 1.0 in./25.4 mm |
| Operating Characteristics | |
| Operating Temp. | Thermal transfer: 40ºF to 105ºF/5º to 40ºC, Direct thermal: 32ºF to 105ºF/0º to 40ºC |
| Storage/Transportation Temp. | -40ºF to 140ºF/-40º to 60ºC |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 5% to 85% non-condensing |
| Electrical | Universal auto-ranging power supply 100-240 VAC; 50-60 Hz, ENERGY STAR certified |
| Agency Approvals | IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, BIS |
| Print DNA Software | Supported by Print DNA suite of software capabilities, some features may require a license |
| Firmware | ZBI 2.0™, ZPL and ZPL II™, EPL and EPL2™ (EPL available on 203 dpi models only) |
| Barcode Symbologies | |
| Linear Barcodes | Code 11, Code 39, Code 93, Code 128 with subsets A/B/C, UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
| 2D Barcodes | Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite) |
