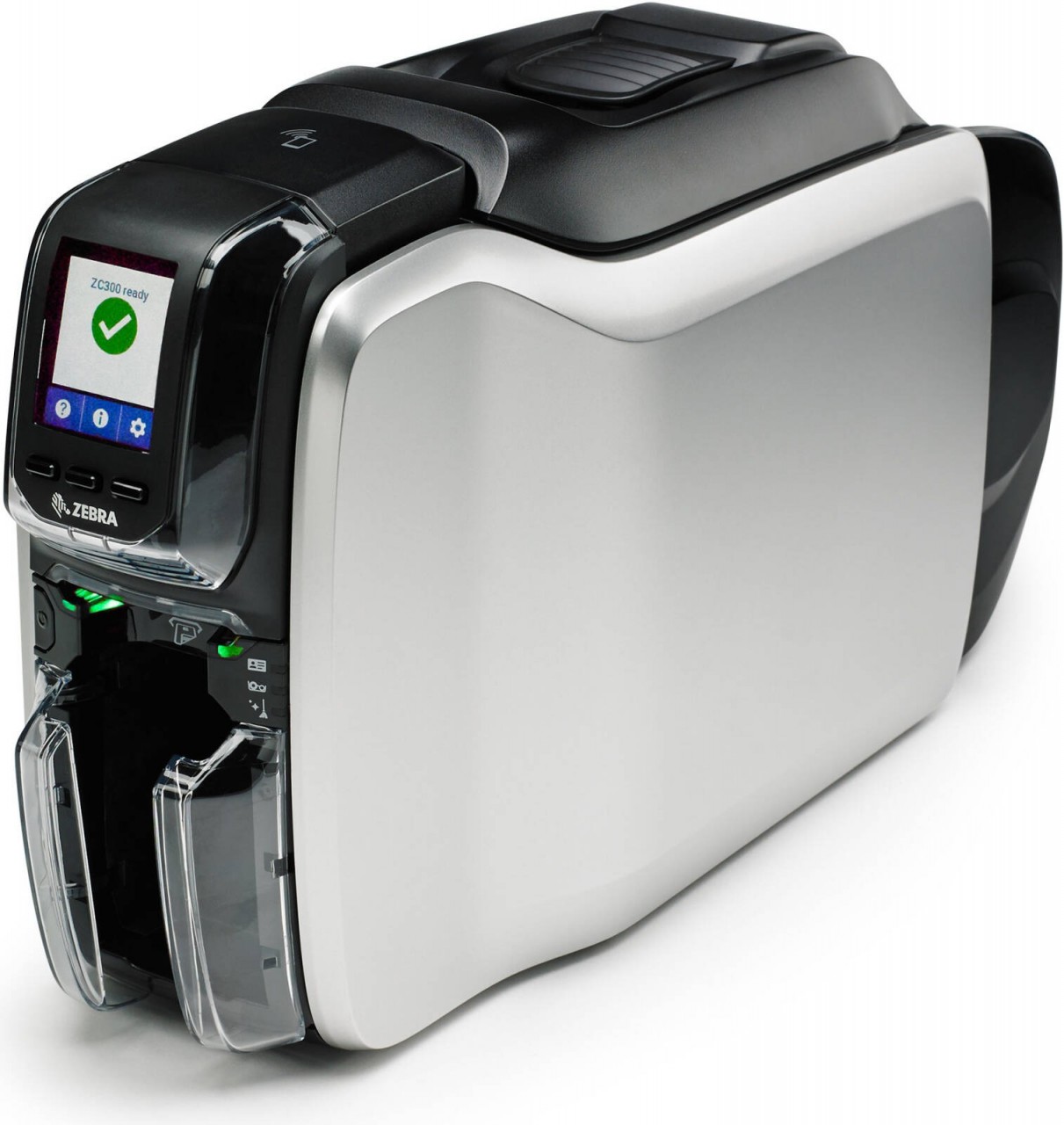

Loading... Please wait...With the groundbreaking simplicity of the ZC300, you can print what you want, when you want, from just about anywhere. Print single or dual-sided edge-to-edge colour or black and white cards, with new ribbons that offer speciality colours and special effects. You get push-button card printing through elegant engineering that eliminates virtually all pain points typically associated with card printing. The slimmest fit- everywhere design in this printer class makes it easy to add card printing wherever you need it. And Print DNA offers a collection of high-value solutions that makes it easier than ever to integrate card printing into your apps, design cards and support your printers.
| Printing Specifications | |
| Print Method | Dye-sublimation thermal transfer direct to card |
| Printing Options | Full-color or monochrome, single and dual-sided, edge-to-edge on standard CR-80 media |
| Printing Throughput (Cards/Hour) | 900 cards/hour single-sided monochrome, 200 cards/hour single-sided YMCKO, 140 cards/hour dual-sided YMCKOK, 450 cards/hour dual-sided monochrome |
| Media Specifications | |
| Ribbon Compatibility | Zebra genuine ribbons only, includes recyclable cartridge |
| Ribbon Types | YMCKO (200, 300), YMCKOK (200), ½ YMCKO (400), ½ YMCKOKO2 (250), YMCKLL (200), YMCPKO (200), SrDYMCKO (200), KrO (700), KdO (700), Black Monochrome (2000, 1500), White Monochrome (1500), Red Monochrome (1500), Blue Monochrome (1500), Gold Monochrome (1500), Silver Monochrome (1500) |
| Card Compatibility | Thickness: 10-40 mil, Size: CR80 ISO 7810 ID-1 format, CR79 |
| Operating Characteristics | |
| Operating Temperature | 59º F to 95º F (15º C to 35º C) |
| Storage Temperature | 23º F to 158º F (-5º C to 70º C) |
| Operating Humidity | 20% to 80% non-condensing |
| Media Storage Conditions | Temperature: 41º F to 77º F (5º C to 25º C), Humidity: 35% to 65% non-condensing |
| Electrical Specifications | Auto-switching single-phase AC power, Operating range: 90-132VAC and 190-264VAC RMS, Frequency range: 47-63 Hz, FCC Class A |
| Physical Characteristics | |
| Dimensions (Single-Sided) | 10.2 in. H x 6.2 in. W x 15.1 in. D (258 mm H x 157 mm W x 383 mm D) |
| Dimensions (Dual-Sided) | 10.2 in. H x 6.2 in. W x 18.4 in. D (258 mm H x 157 mm W x 468 mm D) |
| Weight (Single-Sided) | 8.8 lbs (4.0 kg) |
| Weight (Dual-Sided) | 9.7 lbs (4.4 kg) |
| Communications and Interface Capabilities | USB 2.0, Built-in 10/100 Ethernet (Standard), 802.11ac (Optional) |
| Encoding Options | Magnetic stripe encoder (ISO 7811), Combined MIFARE ISO 14443 A and B contactless encoder, ISO 7816 Smart Card Contact Station, EPCglobal Gen 2 UHF RFID encoder |
| Printer Drivers | |
| Microsoft Windows Certified | Windows Server 2008, Windows 7, Windows 8/8.1, Windows Server 2012, Windows 10, Windows Server 2016 |
| Linux | Ubuntu 16.X (64 Bit) |
| Apple | MAC OS X 10.13.X (64 bit) |
