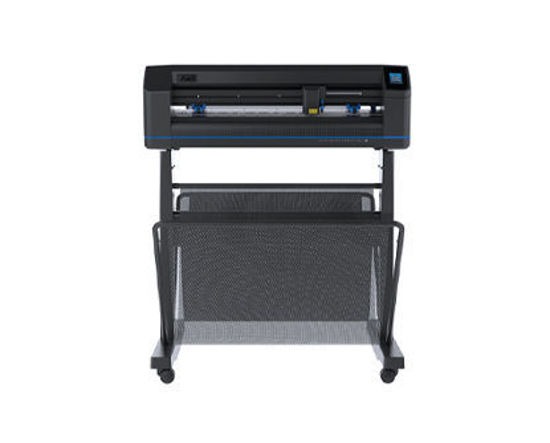

Summa S1 D60 Cutting Plotter, Professional Flatbed Digital Cutting System

Home
Plotters
Summa S1 D60 Cutting Plotter

Summa S1 D60 Cutting Plotter

Price:

$2,573.00

SKU:

194536734

Brand:

Summa

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

The S1 D60 is Summa’s smallest vinyl roll cutter and represents the ideal cutting solution for startup sign makers who want to automate their cutting workflow and extend their cutting applications. Though compact in size, this roll cutter delivers exceptional performance consistently.

Key Features

The S1 D60 is the perfect choice for starters and professionals alike. It is compact, lightweight, and adored by flex and flock users and for label cutting.

This device can be easily configured to suit your needs with the stand and/or basket options. Maximise precision and quality by opting for factory-installed extra pinch rollers that ensure your media stays perfectly flat.

For automation enthusiasts, pair it with our Tray One sheet feeder for seamless, automated sheet feeding and enjoy exceptional performance, consistently.

Key Benefits

Advanced cutting technology
Ergonomic Design
User-friendly features
Latest alignment method
Legendary tracking performance
Connectivity: USB, Ethernet, and WiFi (region-dependent)
Summa GoSign software
Desktop cutter
Automation through PostNet Barcode
Optional stand / basket
Optional Tray One sheet feeder
Ideal for media up to 60cm wide

Product Specification

Technical Specifications

Model: S1 D60
Dimensions: 97 x 40.6 x 30.4 cm
Media Width: 7.9 to 70.5 cm
Max. Working Width | Oversized Mode* 59 cm x 50 m | 65 cm x 50 m 'Oversized' mode allows a wider cutting area: +/6 cm. *In ‘Oversized’ mode the tracking performance is no longer guaranteed
Alignment Type :
- OPOS X - OPOS Xtra
- Barcode job recognition
- Up to 2 x 64 marks on the X-line
- Y-Line compensation
Tracking Performance : 8 m max. within guaranteed specifications for media less than 762 mm 4 m max. within guaranteed specifications for media larger than 762 mm
Media Thickness: 0.05 mm to 0.25 mm / 0.8 mm with optional sandblast knife
Accuracy: 0.2% of move or 0.25 mm, whichever is greater
Speed : Up to 1131 mm/s diagonal
Acceleration : Up to 3 G diagonal
Knife Pressure : 0 to 600 gr
Other Features : FlexCut (cutting through)
Connectivity : Ethernet, USB, WiFi (region dependent)
Power Requirements : 100-240 VAC, 50/60 Hz
Included Software : Summa GoSign Software, Summa Cutter Control / Plug-in: Illustrator, CorelDraw, MacSign
Cutting Technology : Drag knife
