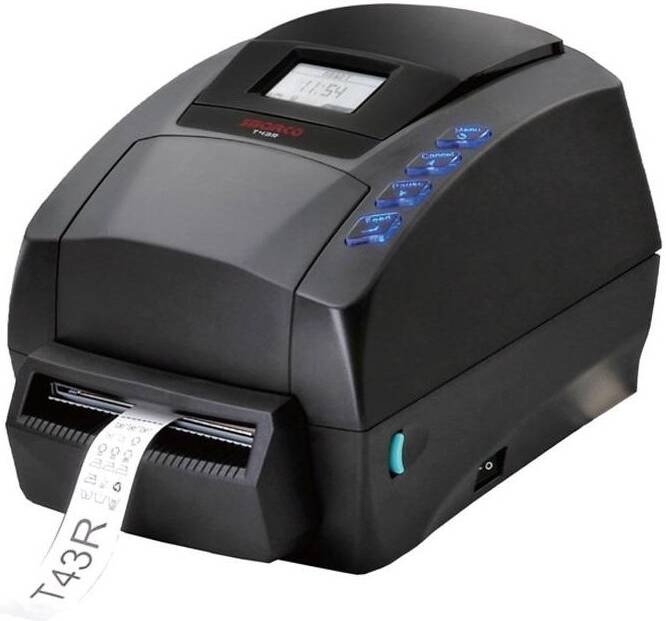

Sbarco T43R Thermal Transfer Label Printer
Product Description
SBARCO, printing technology leader, release a new model, T43R, which is designed specially for care label (textile or washing label) application. 300 dpi printing resolution makes care label printing quality more fine; Printing and cutting in very precise postion because of its unique design of stacker, label roll holder and cutter,of course, no shifting and sticking problem during printing process on T43R. Moreover, T43R shows its capacity in minimum cutting length 10mm.
A good care label printer cannot just be a good printer, it needs also a good software to work with. SBARCO presents synchronously BarDrawer which is bundled with care label symbol to let user to design care label without any difficulty.
T43R, a cost-effective desktop care label printer can do all what industrial care label printer can do, is your best choice.
Product Specification
| CPU AND MEMORY | |
| CPU | 32-bit CPU |
| Memory | 8MB SDRAM, 4MB Flash ROM |
| Resolution | 300 dpi |
| Print Mode | Thermal Transfer |
| Print Speed | 1” to 3” ips |
| Max. Print Length | 50 inches |
| Print Width | 3.15” (80mm) |
| Barcode | 1D: Code39, Code93, Code128 UCC, Code128 auto, Codabar, EAN8, EAN13, Interleaved 2 of 5, UCC/EAN 128, UPC A, UPC E, UPC Interleaved 2 of 5; 2D: Data Matrix, MaxiCode, PDF417, QR code |
| Font | 5 internal expandable bitmap fonts (alpha-numeric); 2 internal expandable bitmap fonts (numeric only); Downloadable soft font; 4 directions: 0, 90, 180, 270 degrees |
| Image | PCX, Direct binary graphic |
| SENSOR TYPE | Moveable reflective sensor, Cover open sensor, Ribbon sensor |
| CONTROL PANEL | 4 function keys, 4 status LED lights, 1 error LED light |
| CARE LABEL | |
| Width | 0.59”~3.15” (15mm~80mm) |
| Media Roll Diameter | ID-3” (76.2mm)/OD-Max. 10” (254mm) |
| Media Thickness | 0.0059” (0.15mm) |
| Media Type | Care label, Satin label |
| RIBBON | |
| Width | 1.0” (25.4mm) to 4.3” (110mm) |
| Ribbon Roll Diameter | ID- 0.5”/OD-1.535” |
| Ribbon Length | Max. length-110M |
| Ribbon Type | Wax, wax/resin, resin |
| INTERFACE | USB A, USB B, RS-232, Ethernet 10/100Mbps (option) |
| POWER | Switching power adapter - Input: 100 to 240V/Output: 24V |
| OPTION | Ethernet module |
| OPERATING TEMPERATURE | 5°C to 45°C (40°F to 112.9°F) |
| PRINTER DIMENSION | Width: 200(W) x 263(L) x 188(H) mm; Weight: 3.7KG |
| CERTIFICATION | CE, FCC class B, CCC, CB |
