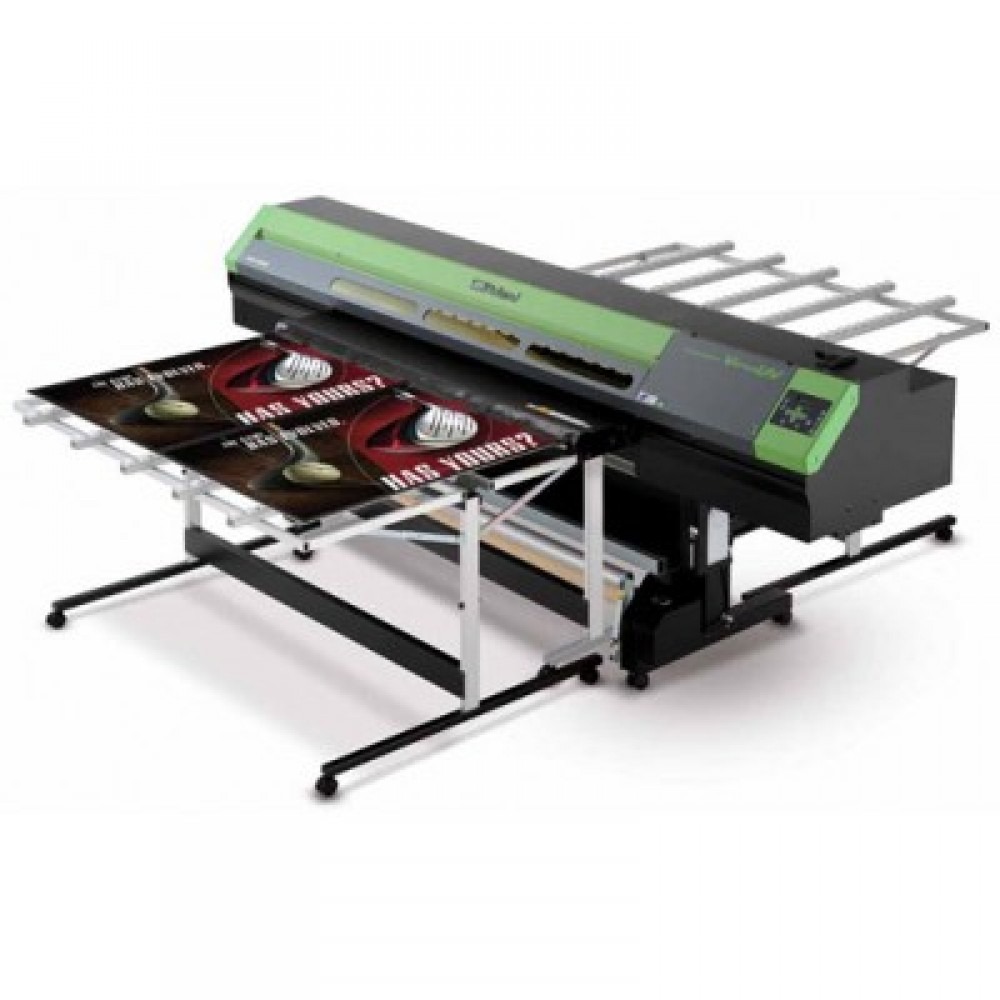

Roland VersaUV LEJ 640 UV Hybrid Flatbed Printer

  • Roland VersaUV LEJ 640 UV Hybrid Flatbed Printer
Price:
$28,750.00
SKU:
194511703
Brand:
Condition:
New
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

Eco-UV inks adhere to a wide range of treated and untreated substrates and offer unmatched color gamut and image definition. They produce prints that require no degassing and can be stretched and applied around curved surfaces and edges without cracking. Eco-UV inks are packaged in convenient 220ml cartridges. The LEJ-640 features a Clear Coat ink option for producing stunning texture effects, including matte, gloss varnish and embossed finishes. Offering superior protection for scratch and chemical resistant graphics, both Eco-UV and Eco-UV s last up to six months on outdoor applications with Eco-UV ink lasting up to two years when used in combination with a Clear Coat. To ensure simple ventilation set-up for use with Eco-UV inks, the LEJ-640 features a ventilation hood for easy connection to an air filtration system.

No rock but plenty of roll.

The LEJ-640 is a UV LED Printer that’s built to last. Its all-steel frame with rear and front folding tables reduces vibration and is designed for solid and stable support of industry standard 4’x 8’ sheet materials weighing up to 26lbs. The roll-to-roll mechanism easily loads and feeds extra-large media rolls that weigh up to 88lbs.

Powerfully efficient and ozone-free LED lamps.

The LEJ-640 UV LED Printer features large LED lamps that cure fast and expedite print production. Lasting up to 10,000 hours - ten times longer than conventional UV curing lamps, the lamps operate at a very low-heat and enable printing on heat-sensitive materials without substrate damage. They can be instantly turned on or off for a true on-demand operation that requires no warm-up time.  The LEJ-640 bears the Roland Eco-label for environmental compliance. It has earne


Product Specification

MODELLEJ-640
Printing method Piezoelectric inkjet / Grit roller feed
Acceptable media Width Roll media: 8.3 to 64 in. (210 to 1625 mm) / Rigid or cut sheet: 9.9 to 64 in. (250 to 1625 mm)
Thickness Roll media: Maximum 39 mil (1.0 mm) with liner / Rigid or cut sheet: 0.51 in. (13 mm)
Weight Roll media: Maximum 88 lb. (40 kg) / Rigid or cut sheet: Maximum 26 lb. (12 kg)
Roll outer diameter Maximum 8.3 in. (210 mm)
Core diameter 3 in (76.2mm)

2 in (50.8mm) [requires optional flanges]
Media take-up system Maximum 8.3 in (210 mm) outer diameter / Maximum 88 lb. (40 kg) weight
Printing width Maximum 63.6 in (1615 mm)
Maximum Printing Speed 133 sqft./hr. in CMYK mode
Ink Cartridges Type 10.2 to 63.6 in. (259 to 1615 mm) ECO-UV inks
Capacity 220 ml (± 5 ml)
Colors 6 colors (Cyan, Magenta, Yellow, Black, White and Gloss)
Configuration CMYK+Gloss+White, CMYK+White+White or CMYK+Gloss+Gloss
Ink curing unit Dual UV LED Lamps
Printing resolutions 360x720 dpi, 720x1080 dpi, 720x1440 dpi, 1440x1440 dpi
Distance accuracy Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater.
Interface Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
Power-saving feature Automatic sleep feature
Power supply Voltage and frequency AC 100 to 240 V ± 10%, 50/60 Hz
Required power capacity Maximum 5.7 A
Power Consumption During operation Maximum 500W
Standby mode Approx. 15.2 W
Dimensions

(with stand)
Without table unit : 126[W]x33[D]x51[H] in (3184[W]x836[D]x1281[H] mm) / With table unit: 126[W]x145[D]x51[H] in (3184[W]x3658[D]x1281[H] mm)
Weight (with stand) Without table unit: 530 lb. (240 kg) / With table unit: 697 lb. (316 kg)
Environment Power on Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 35 to 80% (no conde nsation)
Power off Temperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation)
