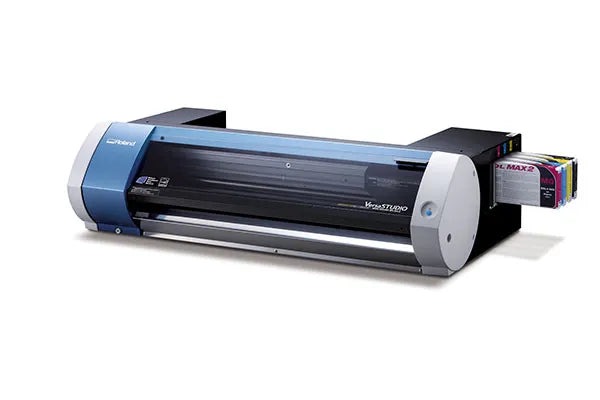

Roland VersaStudio BN 20A 20 Printer Cutter

Home
Vinyl Cutter
Roland VersaStudio BN 20A 20 Printer Cutter

Roland VersaStudio BN 20A 20 Printer Cutter

Price:

$5,845.00

SKU:

194594650

Brand:

Roland

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

The BN-20A packs everything into one, powerful, profit-producing package. This model offers the same benefits as the BN-20, just without the added option of metallic and white inks. The BN-20A is an incredibly versatile print device that is perfect for creating t-shirt graphics, poster prints, stickers and decals - all from the comfort of your desktop.

Features

Compact 20-inch inkjet with integrated printing and contour cutting
A versatile machine for printing t-shirt graphics, decals, stickers, signs, posters and more
A simplified media feed system automatically aligns roll media for printing
Legendary Roland reliability for continuous, economical production

Applications

Apparel
Custom Labels
Decals
Window Signs and Graphics

Product Specification

MODEL	BN-20A
PRINTING METHOD/CUTTING METHOD	Piezoelectric inkjet / Grit roller feed
ACCEPTABLE MEDIA WIDTHS	5.9 to 20.3 in. (150 to 515 mm)
ACCEPTABLE MEDIA THICKNESS	Printing: Maximum 39 mil (1.0 mm) with liner, Cutting: Maximum 16 mil (.4 mm) with liner
ACCEPTABLE MEDIA ROLL WEIGHT	Maximum 13.2 lbs (6 kg)
ACCEPTABLE MEDIA ROLL OUTER DIAMETER	Maximum 5.9 in (150 mm)
ACCEPTABLE MEDIA CORE DIAMETER	2 in (50.8 mm)or 3 in (76.2 mm) cores
PRINTING/CUTTING WIDTH^*1	Maximum 18.9 in (480 mm)
INK CARTRIDGE TYPE	Roland ECO-SOL MAX2
INK CARTRIDGE COLORS	4 Color - CMMYK (Cyan, Magenta, Yellow, Black)
PRINTING RESOLUTION	Max 1440 dpi
CUTTING BLADE TYPE	Roland CAMM-1 series cutter blade
CUTTING SPEED	0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
CUTTING BLADE FORCE	30 to 300gf
CONNECTIVITY	USB 2.0
POWER CONSUMPTION	During Operation: Approx. 90 W, Sleep Mode: Approx. 5.5 W
ACOUSTIC NOISE LEVEL	During Operation: 62 dB (A) or less, During Standby: 42 dB (A) or less
DIMENSIONS/WEIGHT	39.2" W x 23" D x 11.5" H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg)
OPERATING ENVIRONMENT	Power on: Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing), Power off: Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing)
INCLUDED ITEMS	Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User's Manual, etc
