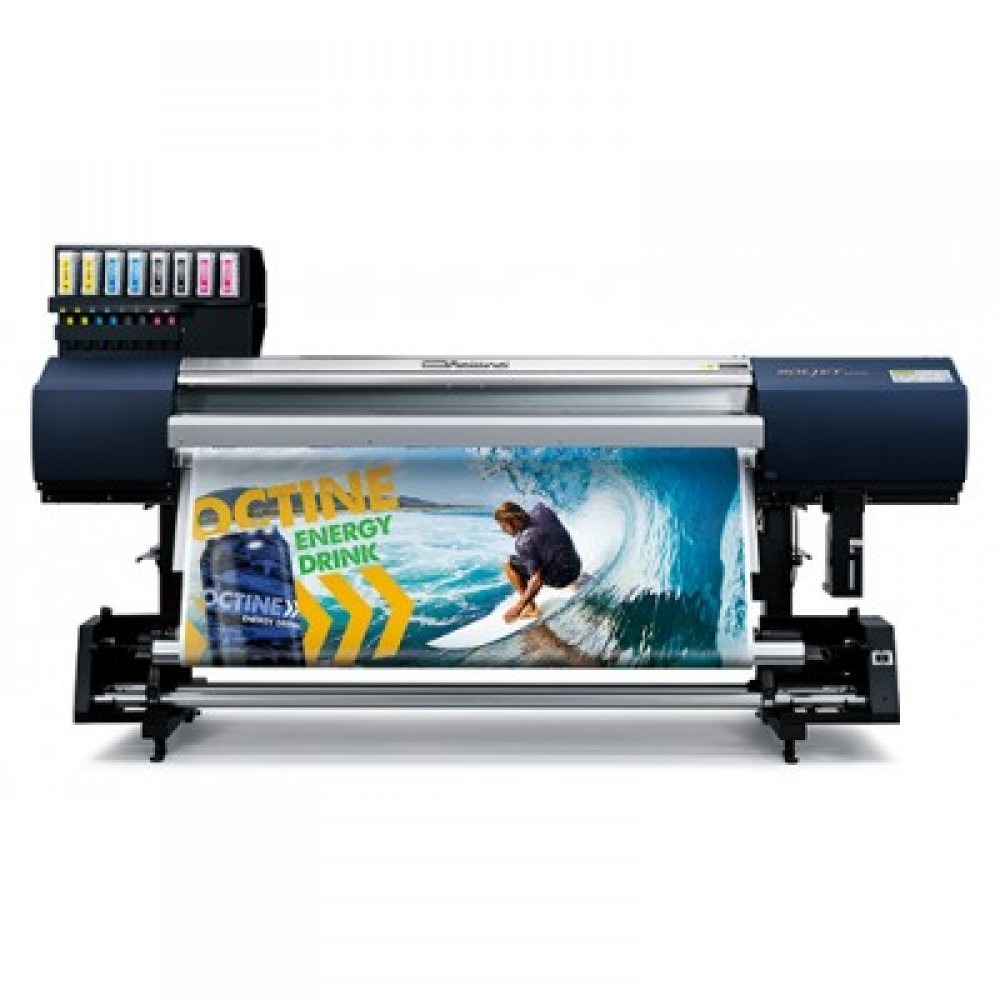

Loading... Please wait...The EJ-640 dries prints quickly – even in high-speed mode – for immediate finishing, installation or collection by the take-up system.
The integrated tri-heater system features:
An included dryer/blower unit evenly dries large prints and enhances image saturation at high speed.
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 10.2 to 64 in. (259 to 1625 mm) | |
| Thickness | Maximum 39 mil (1.0 mm) with liner | ||
| Roll diameter | Maximum 8.3 in (210 mm) | ||
| Roll weight | 88 lbs (40 kg) | ||
| Core diameter *1 | 3 in (76.2 mm) or 2 in (50.8 mm) | ||
| Printing Width *2 |
Max. 63.6 in. (1615 mm) |
||
| Ink cartridges |
Type | Roland DG EJ INK |
|
| Capacity | 1,000-cc cartridge |
||
| Colors | CMYKLcLmLk |
||
| CMYKKYMC |
|||
| Print resolution | Dots per in |
Maximum 1,440 dpi | |
| Print Modes | Resolution | Pass | Speed |
| 4 COLOR CMYK | |||
| Max Speed (Banner) | 360x360 | 1 | 1098 ft2/h (102 m2/h) |
| Billboard (Banner) | 540x360 | 2 | 678 ft2/h (63 m2/h) |
| High Speed (Banner) | 540x360 | 4 | 334 ft2/h (31 m2/h) |
| Standard (Banner) |
720x720 |
5 | 258 ft2/h (24 m2/hr) |
| High Quality (Banner) | 720x1440 |
9 | 140 ft2/h (13 m2/h) |
| High Speed (Vinyl) | 360x720 |
4 | 323 ft2/h (30 m2/h) |
| Standard (Vinyl) | 720x720 |
6 | 215 ft2/h (20 m2/hr) |
| 720x720 |
8 | 161 ft2/h (15 m2/h) | |
| High Quality (Vinyl) | 720x1440 | 12 | 108 ft2/h (10m2/h) |
| 7 COLOR CMYKLcLmLk | |||
| High Speed (Banner) | 540x360 | 8 | 172 ft/2/h (16 m2/h) |
| Standard (Banner) | 720x720 |
10 | 129 ft2/h (12 m2/h) |
| High Quality (Banner) | 720x1440 |
18 | 65 ft2/h (6 m2/h) |
| High Speed (Vinyl) | 360x720 |
8 | 161 ft2/h (15 m2/h) |
| Standard (Vinyl) | 720x720 |
12 | 108 ft2/h (10m2/h) |
| High Quality (Vinyl) | 720x1440 |
20 | 59 ft2/h ( 5.5 m2/h) |
