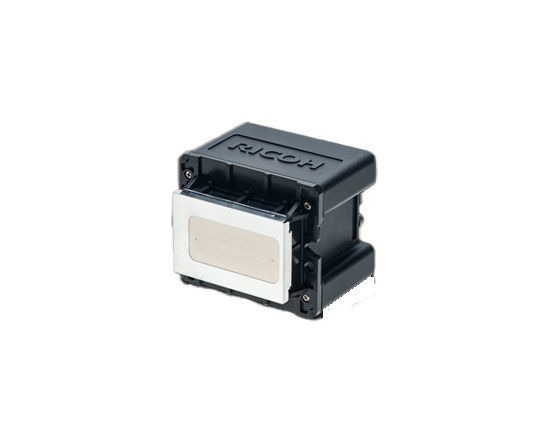

RICOH TH5241 Printhead

  • RICOH TH5241 Printhead
  • RICOH TH5241 Printhead 2
  • RICOH TH5241 Printhead 3
Price:
$1,706.00
SKU:
194513234
Brand:
Condition:
New
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.

With 1,280 nozzles configured in 4 x 320 nozzle rows, this head achieves high-resolution 600dpi printing.

This inkjet printhead can be used for various applications.

The following items are expressly excluded from warranty coverage:
  • defects related, in any way, to the use of non-original inks
  • clogged, missing or deviated nozzles
  • defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
  • defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
  • defects related to improper loading of media
  • all other defects, failures or damage not considered manufacturing defects
  • defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
  • defects that are merely cosmetic in nature.

Product Specification

Product Specifications

  • Method: thin-film piezoelectric transducer with bend mode
  • Print Width: 27.1 mm (1.06")
  • Total printhead dimensions: 52.7 x 45.8 x 55.4 mm
  • Number of nozzles: 1,280 (4 x 320 channels), staggered
  • Nozzle Resolution: 600npi(2 colors, 1 color) 300npi(4 colors)
  • Nozzle spacing: A : 2.286mm B : 6.095mm
  • Compatible ink: UV, Solvent, Aqueous.
  • Weight: 63g
  • Max. number of color inks: 4 colors
  • Temperature control: Integrated thermistor, without heater.
  • Operator temperature range: 40° C
  • Firing frequency: 40kHz (2 levels); 24kHz (4 levels)
  • Grey-scale: 4 levels
  • Drop volume: 3pl (Single drop); 3~12pl (max 21pl) (Multi drop)
  • Viscosity range: 7mPa・s
  • Surface tension: 27±5mN/m
  • This printhead carries a manufacturer warranty.
