MIMAKI CJV30 100 PRINTER CUTTER 40 INCH

Home
Digital Printer
MIMAKI CJV30 100 PRINTER CUTTER 40 INCH

MIMAKI CJV30 100 PRINTER CUTTER 40 INCH

Price:

$4,915.00

SKU:

194563602

Brand:

Mimaki

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

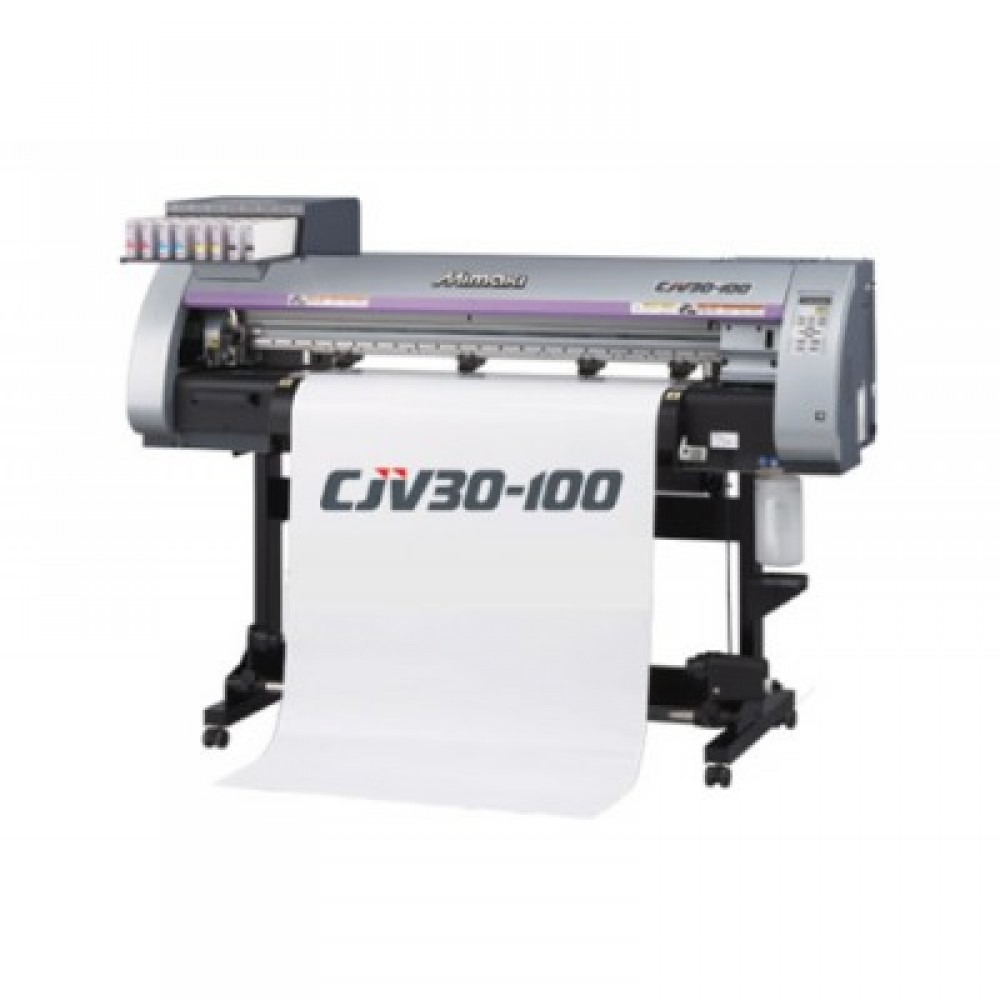

MIMAKI CJV30-100 PRINTER/CUTTER (40-INCH)

Mimaki CJV30 series printer cutters increase your productivity by integrating printing and cutting into one device. Unique features allow continuous unattended printing and cutting.

Continuous Crop Mark Detection increases cutting accuracy.
Automatic Media Clamp Function allows continuous printing and cutting.
High density, fast drying white ink widens usage of applications
UISS (Uninterrupted Ink Supply System) improves operating performance by allowing continuous unattended printing.
Up to 1440 dpi (variable dot technology)
Printing speeds:
- 186 sqft/hr (17.3 m2/hr) at 540 x 720 dpi, 4 pass
- 126 sqft/hr (11.7 m2/hr) at 540 x 1080 dpi, 6 pass
- 78.5 sqft/hr (7.3 m2/hr) at 720 x 1440 dpi, 8 pass
Cutting speeds:
- up to 11.8 in/sec (30 cm/sec)
Simple Studio and Fine Cut software included for easy sticker making. For professional users, Raster Link Pro4 SG RIP is included as standard.

Product Specification

MAXIMUM PRINT / CUT WIDTH		610 mm (24.0")	1,020 mm (40.1")	1,361 mm (53.5")	1,610 mm (63.3")
PRINT RESOLUTION		540 dpi, 720 dpi, 1440 dpi
PRINT MODE (SCAN X FEED)		540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi
		720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi
		1,440 x 1,440dpi
INK	KIND	Exclusive solvent ink: SS21 ink, ES3 ink
	CAPACITY	4-color mode: 440 cc cartridge x 2/color, 880 cc/color
	CAPACITY	6-color mode: 440 cc cartridge x 1/color, 440 cc/color
MEDIA	WIDTH	620 mm (24.4")	1,030 mm (40.5")	1,371 mm (53.9")	1,620 mm (63.7")
	THICKNESS	Less than 1.0 mm
	ROLL WEIGHT	Less than 25 kg (55 lbs.)
	ROLL DIAMETER	Inside: 2 inch, 3 inch / Outside: Less than φ180 mm (7.1")
MAXIMUM CUTTING SPEED		30 cm: 11.8"/s (42 cm: 1 6.5"/s at the angle of 45)
CUTTING FORCE		10-350 g
APPLICABLE TOOLS		Cutter, Water based ball-point pen, Oil based ball-point pen
MEDIA CUTTING		Cutting in Y direction by cutter on the head
MEDIA HEATER		Pre/print/post heater
MEDIA TAKE-UP DEVICE		Roll take-up device (Standard), inside/outside selectable
COMMAND		MRL-III , MGL-IIc2
INTERFACE		USB 2.0
APPLICABLE STANDARD		VCCI class A, FCC class A, UL60950, CE Marking (EMC directive, low voltage directive), CB report
POWER		AC100V~240V, Less than 1,380VA
OPERATION ENVIRONMENTS		20°C~35°C, 35~65%RH (No condensation)
DIMENSIONS (W X D X H)		1,524 x 739 x 1,424mm (60" x 29.1" x 56.0")	1,934 x 739 x 1,424mm (76.1" x 29.1" x 56.0")	2,289 x 739 x 1,424mm (90.1" x 29.1" x 56.0")	2,538 x 739 x 1,424mm (99.9" x 29.1" x 56.0")
WEIGHT		110kg (242 lbs.)	130kg (286 lbs.)	145kg (319 lbs.)	160kg (352 lbs.)
