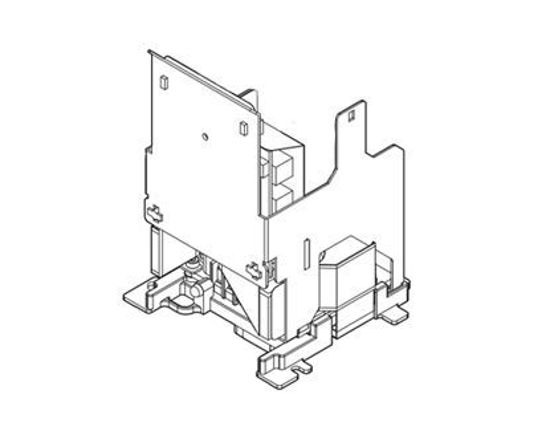

JV330 Maintenance Head 330 Assy

Product Name: JV330 Maintenance Head 330 Assy
Manufacturer: Mimaki (Original Equipment Manufacturer)

1. Compatibility

Suitable for the following Mimaki printer models:

• Mimaki JV330-130

• Mimaki JV330-160

• Mimaki CJV330-130 / CJV330-160

• Mimaki TS330-1600

2. Functional Role

The maintenance head assembly is a dedicated service component designed to support the printer’s head maintenance system. It is essential for:

• Sealing the print head (capping) to prevent ink drying

• Performing automatic suction cleaning cycles

• Managing waste ink removal

• Supporting nozzle flushing and priming during maintenance
  These functions are crucial to sustain print quality and extend the life of the print heads.

Note: Detailed functional components (e.g., caps, suction pump, tubes) are typically manufacturer-specific and not published as standalone dimensioned specs, but can be inferred from maintenance system design.

3. Physical / Operational Attributes

While Mimaki typically does not publish individual part dimensions for components such as the maintenance head in public specifications, the following general attributes apply based on OEM documentation and part listings:

• Original OEM Part: Yes (Mimaki genuine part)

• Assembly Includes: Maintenance head unit with seals/caps, suction components, tubing interfaces

• Installation Location: Maintenance station of the JV330-series printer

• Installation Requirement: Installed in the printer’s head maintenance carriage with proper alignment and seals

4. Manufacturer Notes

• This part is not universally covered under warranty for issues caused by non-original ink use, misuse, or improper storage.
