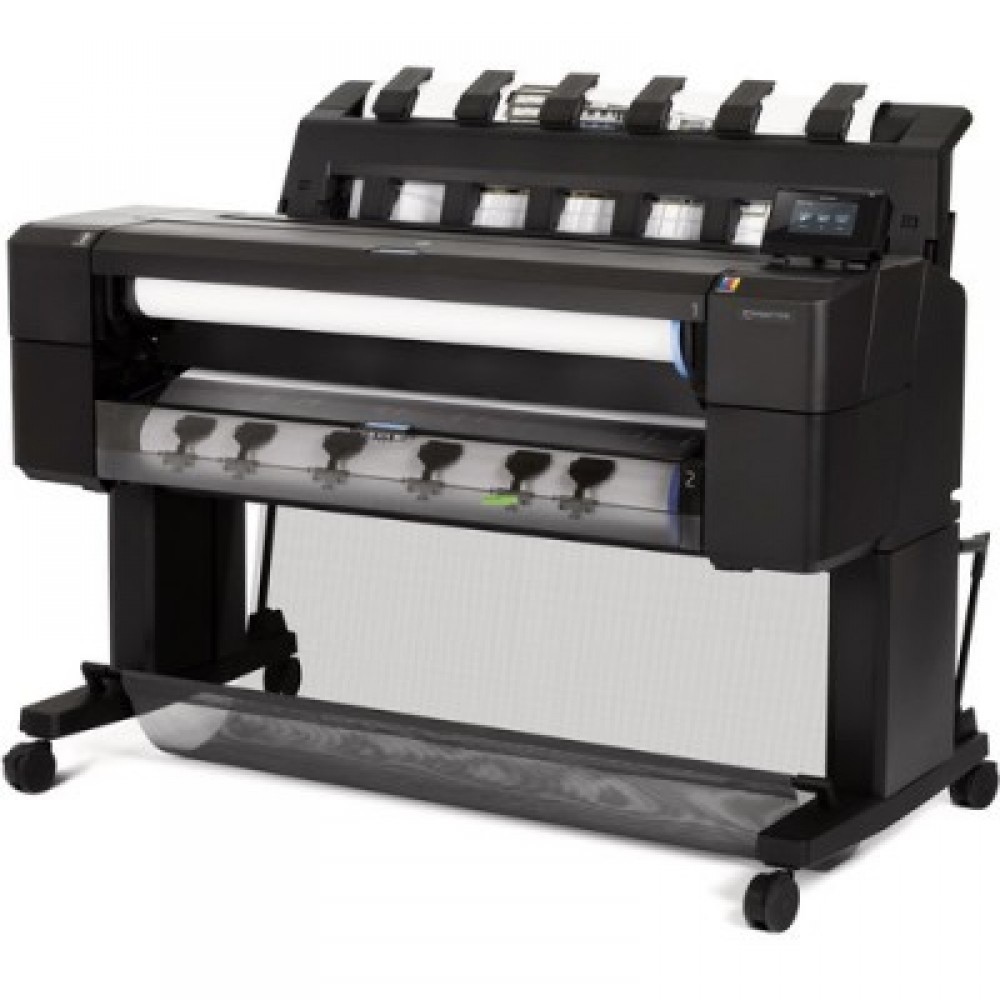

HP DesignJet T1530 Dual Roll 36 Inch Thermal Inkjet PostScript Printer
SKU:
194579756
Brand:
Condition:
New
Weight:
0.00 LBS
Rating:
(
1 product review
)
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description
|
HP DESIGNJET T1530 DUAL-ROLL 36 INCH THERMAL INKJET POSTSCRIPT PRINTER |
|
|---|---|
| Printing Technology | HP Thermal Inkjet |
| Maximum Resolution | Up to 2400 x 1200 optimized dpi |
| Print Speed | Print Time Line Drawing: 21 sec/page on A1/D (economode) Print Speed Line Drawing: 120 A1/D prints per hour (economode) |
| Ink Type | Dye Based: C, G, M, Pk, y Pigment Based: mK |
| Ink Droplet Size | 6 pL (C, M, Y, G, pK) 9 pL (mK) |
| Ink Cartridge Configuration | 6 Cartridges: cyan, gray, magenta, matte black, photo black, yellow |
| Ink Cartridge Capacity | 130 or 300 mL |
| Margins | Top x Bottom x Left x Right: Roll: 0.12 x 0.12 x 0.12 x 0.12" (3 x 3 x 3 x 3 mm) Sheet: 0.12 x 0.87 x 0.12 x 0.12" (3 x 22 x 3 x 3 mm) |
| Line Accuracy | ±0.1% |
| Printhead | C, G, M, mK, pK, Y |
| Minimum Line Width | 0.79 mil (0.02 mm) (HP-GL/2 addressable) |
| Guaranteed Minimum Line Width | 2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E)) |
| Maximum Optical Density | Black: 2.15 D (6 L* min) |
| Applications | Line drawings, Renderings, Presentations |
| Memory | 96 GB (file processing) |
| Hard Disk | 500 GB |
|
|
|
|---|---|
| Paper Handling | Input: two automatic front-loading roll feeds, smart roll switching, sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter |
| Paper Types | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) |
| Media Sizes | Standard: Rolls: 11 to 36" (27.9 to 91.4 cm) Sheets: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E) Custom: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm) |
| Roll | External Diameter: 5.5" (14 cm) |
| Media Thickness | Up to 19.7 mil (0.5 mm) |
|
|
|
|---|---|
| Interfaces | Standard: Gigabit Ethernet (1000Base-T) Hi-Speed USB 2.0 |
| Printer Language | Postscript Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF |
| Printing Paths | Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver |
| Drivers | Included: HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X |
|
|
|
|---|---|
| Temperature | Operating: 41 to 104°F (5 to 40°C) Storage: -13 to 131°F (-25 to 55°C) |
| Operating Humidity | 20 to 80% RH |
| Acoustic Noise | Sound Pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep) Sound Power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep) |
| Power Consumption | Printing: 120 W Sleep: 1.3 W (5 W with embedded Digital Front End) |
| Input Voltage | Auto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz) |
| Input Current | 2 A maximum |
| Certifications | Safety USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS) Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze |
| Dimensions (W x D x H) | 55.1 x 36.1 x 43.7" (139.9 x 91.6 x 111 cm) |
| Weight | 194 lb (88 kg) |
