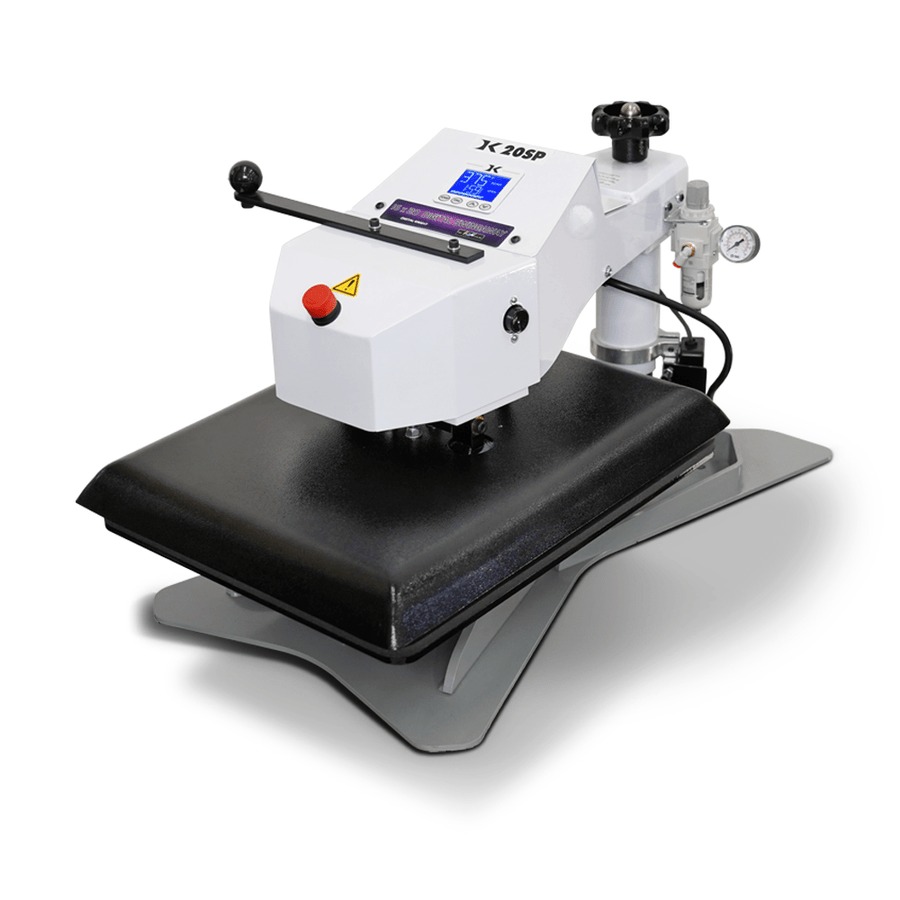

The DK20SP utilizes the same Digital Knight control system series and operates with a smooth swing-away fashion instead of shuttling. For demanding press runs and super consistent results, the DK20SP is an ideal press for meeting requirements that go beyond what a manual transfer press and operator can handle. The DK20SP is the industrial-grade midrange solution for heavy duty manual heat presses.

This heat press is well known in the industry as the top-end robust workhorse of all swing-away heat presses.

Note: this heat press requires a 5 gallon air compressor with the capability to reach 100 PSI and 1/2 cubic feet per minute.

FEATURES

• Fully digital temperature control (32°-600°F range)
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-110 PSI range
• Upper platen now lowers to apply pressure from the top
• Total applied force of 3000 lbs max
• 70 Programmable presets
• Solid steel welded framework
• SuperCoil-Microwinding™ heater technology
• Accommodates up to 2" thick
• Temperature readout accuracy of ±2°F -- Can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Non-stick-coated 3/4" thick heat platen
• Lifetime warranty on heat platen
• 3-year warranty on the control panel
• 1-year warranty on entire press
