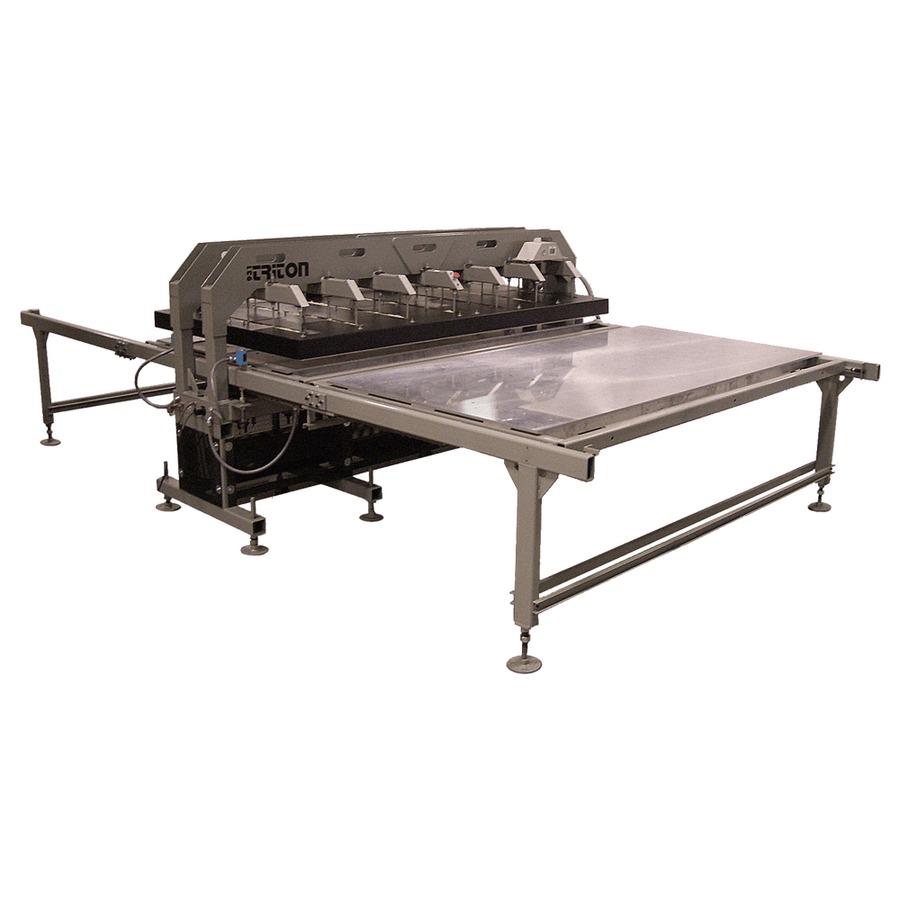

Geo Knight 931 TRITON Auto-Shuttle Heat Press
Product Description
The 931 TRITON is a large format pneumatic heat transfer, press built for pressing a wide variety of materials. It is geared, towards high-production pressing of multiple piece goods as, well as 4’ x 8’ sheet materials. The 931 TRITON answers the demand for a more stable, solid work base along with the capability of pressing transfers, in an oversized, large-area environment. Typical applications include heat transfer printing onto fabrics such as banners &, garments, thicker materials such as carpets & mats, rigid goods, like tile & ceramic, as well as wood, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, foiling, embossing, laminating, hot-stamping, heat sealing and, other applications requiring a massive size heat transfer press.
FEATURES
- Digital integrated temperature and time control
- Available in 240V 3-Phase or 480V 3-Phase Power
- Available in Single shuttle or Dual loading table format
- Multi Air Bag Pressure design for Self Leveling of pressure
- Precision PLC Motor Controlled Automatic Indexing of Tables
- Uniform Lift / Parallel Platen Action & Adjustable Applied Force
- Productive Foot Pedal Operation & Emergency Release Safety Circuit
- Electronic Photo Eye Safety Sensor Light Curtain Around Heat Platen
- 2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
- Oversized heat platens ranging up to 8ft x 12ft available upon request
Product Specification
Geo Knight 931 TRITON
Model: Geo Knight 931 TRITON Auto‑Shuttle Heat Press
Type: Automatic air-operated shuttle heat press (pneumatic)
Control System:
-
Digital temperature control
-
Digital timer
-
Precision PLC motor-controlled automatic indexing of loading tables
Heat Platen:
-
2″ thick solid mirror-surface ground aluminum platen for even heat distribution
-
Embedded high-wattage heating rods placed throughout the platen for consistent heat
Pressure System:
-
Multi-air bag pressure design for self-leveling force (compressor required)
-
Industrial pneumatic air bags provide heavier pressing force than standard cylinders
Safety & Operation:
-
Electronic photo-eye safety sensor light curtain around the heat platen
-
Foot pedal operation & emergency release safety circuit
-
Redundant micro switches to confirm table location before operation
Table & Shuttle:
-
Automatic shuttle table loading (single or dual station options)
-
Smooth, quiet precision indexing for loading/unloading
Platen Sizes:
-
Standard: 54″ x 60″, 54″ x 72″, 54″ x 84″, 54″ x 103″
-
Custom sizes up to 8 ft × 12 ft available
Power Requirements:
-
230 V 3‑Phase or 480 V 3‑Phase options
Applications:
Ideal for high-production heat transfer, including sublimation, foiling, embossing, laminating, hot-stamping, heat sealing, and printing on fabrics, banners, carpets, mats, tiles, wood, plastics, and more.
Warranty & Support:
-
Free lifetime technical support
-
1-year warranty on heating elements, controls, and the press unit
