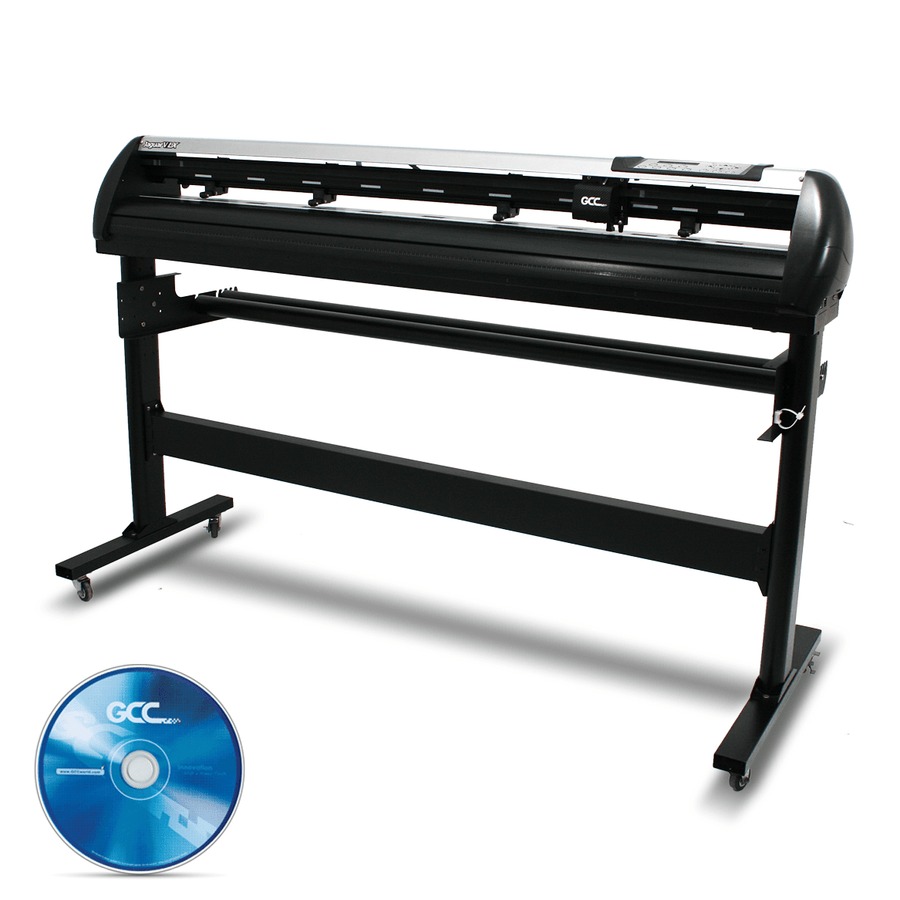

The GCC Jaguar V-LX 72″ is a roller-type vinyl cutting plotter designed for professional sign makers, graphics shops, and large-format production environments. It’s part of the Jaguar V series, with the LX designation meaning it includes enhanced contour cutting features and advanced media handling systems for high-precision work.

Core Features & Capabilities

High-Performance Cutting

• Maximum Cutting Width: ~72″ (~1830 mm) — ideal for large graphics and wide-format vinyl.

• Cutting Force: Up to 600 g downforce for handling a wide range of materials.

• Cutting Speed: Up to 60 ips (~1530 mm/sec) for fast throughput.

• DC Servo Motor: Provides consistent and responsive motion control.

• Tangential Emulation Mode: Helps produce cleaner, more precise cuts — especially for small text and intricate shapes.

Advanced Contour Cutting (LX-Only Enhancements)

The LX version adds the enhanced AAS II Contour Cutting System which includes:

• Automatic registration mark detection — reads printed markers to align cutting paths precisely.

• Segmental positioning to correct skewed prints and enhance contour accuracy.

• Auto Rotation — intelligently rotates cutting jobs based on media direction, so you don’t have to reposition manually.

These features make the machine excellent for print-and-cut workflows where contour accuracy is essential (e.g., stickers, decals, vehicle wraps).

Media Handling & Tracking

• Guaranteed tracking up to ~10 meters — helps maintain alignment over long cuts.

• Adjustable pinch roller configuration for different media widths and tension control.

• Standard roll-to-roll compatibility (depending on setup) and media baskets to keep material clean and organized.

Connectivity & Compatibility

• Triple-port connectivity: USB, Serial (RS-232), and Ethernet for flexible connection to computers and networks.

• Command languages: Supports HP-GL / HP-GL2 command sets used by most design and cutting applications.

• Compatible with Windows and various cutting software packages, including CorelDRAW, Adobe Illustrator via plug-ins, and other third-party RIP/cut software.

Control & User Interface

• LCD control panel with multiple keys for local operation.

• Easy-to-use interface for feed, cut, test cut, and function selection.

Typical Materials It Can Cut

• Vinyl for signs and banners

• Vehicle graphics and fleet wrap materials

• Paint protection film (PPF)

• Window tint film

• Heat transfer vinyl for apparel

• Sandblast stencil material

• Rhinestone/stencil templates
  (Actual usable materials depend on thickness up to ~0.8 mm).

Physical & Operational Specs (Summary)

• Media loading range: ~300 mm – ~1900 mm width.

• Cutting accuracy: High resolution down to ~0.006 mm mechanical.

• Weight: ~194 lb (88 kg) for the 72″ unit.

• Reliable build: Designed for professional and commercial use.

Applications & Use Cases

This cutter is widely used for:
✅ Professional sign cutting and vinyl graphics
✅ Print-and-cut contour graphics
✅ Car wraps, PPF layout cutting, window tint patterns
✅ Custom decals, stickers, lettering
✅ Apparel heat transfer cut designs
✅ Commercial fleet branding projects
