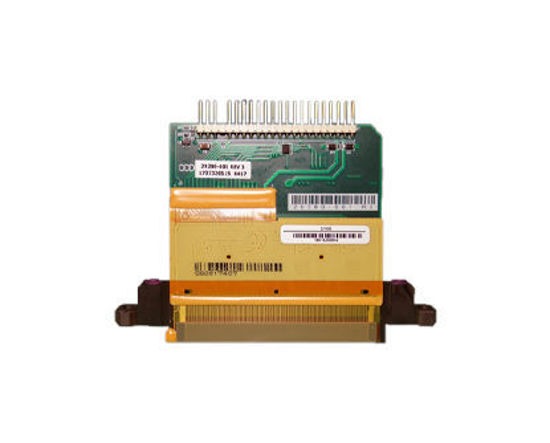

The Emerald QE-256/80 AAA printhead is high performance inkjet printheads designed for a broad range of industrial and commercial printing applications at resolutions of up to 100 dpi. It is compatible with a broad range of inks, including UV-curable, aggressive organic solvent and aqueous inks and associated maintenance fluids.

We recommend to change the head cables when installing a new printhead.

Specifications:

• Number of addressable Jets per module : 256
• Print width : 64.77 mm (2.55 inches)
• Native resolution: 100 dpi
• Native drop size: 80 pl
• Largest drop size: 200 pl
• VersaDrop Max Productivity: 1600 ng-kHz with drop sizes between 80 and 200 ng
• Firing Frenquency : 20 kHz
• 80 picoliter nominal drop size
• 256 individually addressable nozzles
• Incorporates VersaDrop™ grayscale jetting capability
• Excellent channel-to-channel uniformity
• High frequency continuous operation
• Lightweight with thin profile
• Supports UV-curable, solvent and aqueous-based inks
• Integral temperature sensor
• Dual-ported with minimal wetted surface area
• OEM accessible non-volatile memory area for tracking purposes
• Integral temperature sensor
• Operation up to 90°C [194°F]
• This printhead carries a manufacturer warranty.
