Dimatix Samba G3L Printhead

Dimatix Samba G3L Printhead

Price:

$8,350.00

SKU:

194562402

Condition:

New

Weight:

2.00 LBS

Rating:

( 1 product review )

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

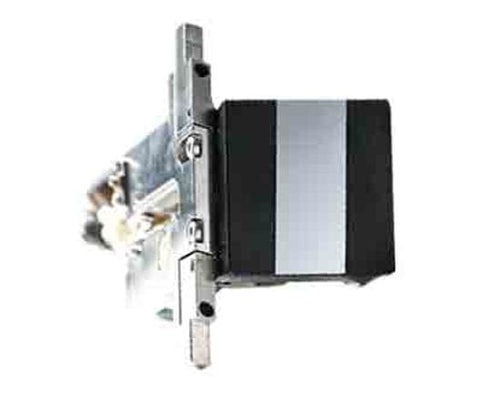

Dimatix Samba G3L Printhead

The Samba G3L printhead technology delivers the breakthrough quality, speed, and scalability required for variable width, single-pass production inkjet printing, and materials deposition applications. Based on state-of-the-art silicon micro-electro-mechanical systems manufacturing (Si-MEMS), the Samba G3L printhead is the most advanced technology available today.

With 2048 individually addressable nozzles, the Samba G3L printhead has 1,200 dpi native resolution (600 dpi in redundant mode) and a native ink drop size of 2.4 picoliters (pl) delivering outstanding print quality that can jet a wide range of fluids including UV curable and aqueous inks.

Product Specification

Number of addressable Jets per module: 2048
Print width: 43mm (1.7 in.) per printhead, stitch for the infinite print width
Native resolution: 1200 dpi/600 dpi in redundant mode
Native drop size/largest drop size: 2.4pl to 13.2pl
Firing frequency: Up to 100Khz
Nominal fluid viscosity: 2 to 10 cPs (3 to 7 cPs recommended)
Compatible jetting fluids: UV-curable, organic solvents, aqueous, latex
Nozzle Plate technology: Silicon MEMS/ Non-wetting coating
Printhead heat type: Fluids thermal transfer.

Find Similar Products by Category

Print Heads

Product Reviews

Outstanding Print Precision & Detail

Posted by Rowan on 15th Feb 2026

With a native resolution of 1200 dpi (and 600 dpi in redundant mode), this printhead delivers detailed and sharp prints even for high‑density graphics. The 2.4 picoliter native drop size gives excellent dot placement and smooth gradients
