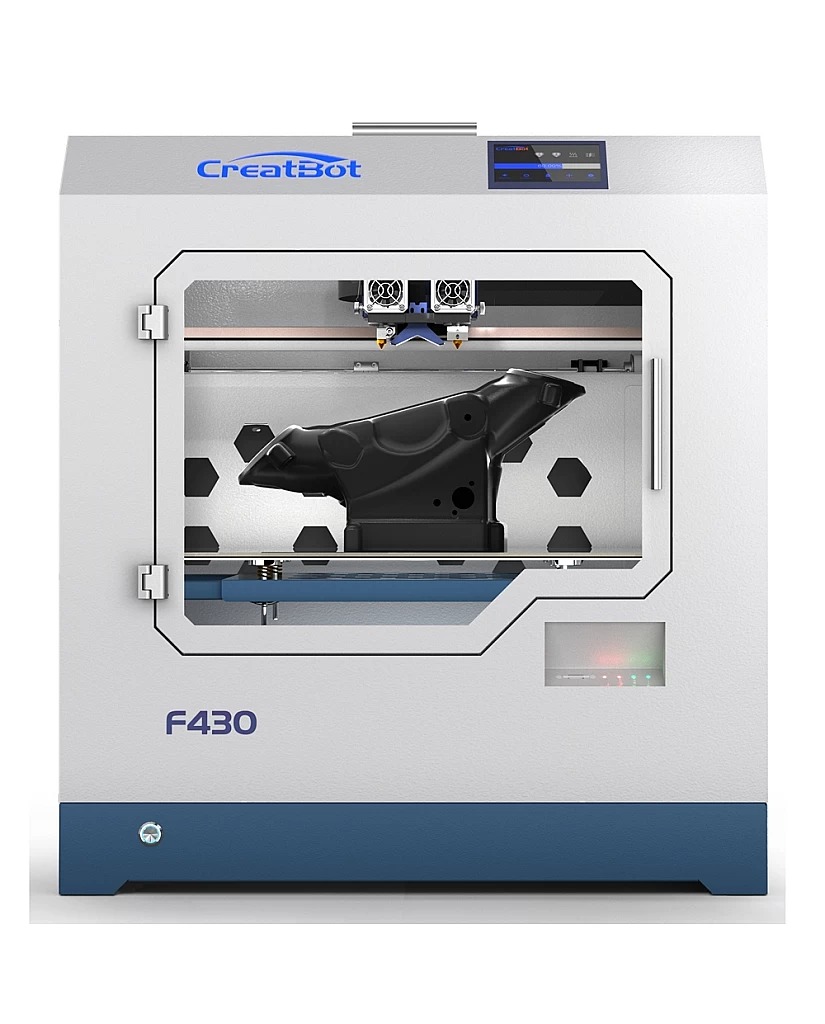

CreatBot F430 High-Temperature Industrial Dual-Extruder 3D Printer

The CreatBot F430 is a low cost high temperature 3D printer for additive manufacturing with PEEK filament and other high performance materials that require high extrusion temperatures.

Main Features:

• Up to 70°C heated installation space minimizes warping
• 3D print PEEK, nylon, PC and other high temperature filaments – 420°C heatable hot end
• Power failure backup to easily resume your 3D prints continuously
• Automatic levelling and adjustment of the construction platform
• Heated installation space reduces warping
• Full metal hot end
• Hot end can be heated up to 420°C
• High manufacturing precision
• Complete metal housing
• Large installation space: 40 x 30 x 30 cm
• Filament sensor for status detection
• Glass ceramic printing bed with carbon fiber sheet for wonderfully smooth undersides
• Simple and intuitive operation via touch screen
• Direct drive of the extruder
• Completely enclosed installation space
• Air filter system for clean ambient air

Support 420°C Hotend

We are the first one to publish 420°C high temperature nozzle to 3d printer market since year of 2016, now it is the 4th new tech version. F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc. The dual hotend is replaceable, which provide more possibility on your application.

High Precision & High Speed

We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

Stability

The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

Fully Enclosed High-Temperature Chamber

Fully enclosed chamber can block all external interference and reduce noise. Hot chamber can provide constant room temperature so that model won’t deform when printing.

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.The printer will avoid invalid printing by stoping print and warning when filament runs out.

Touch Screen

The printer have all-English-menu touch screen which is easy operate and friendly use. One key to warm,one key to print as well as many other shortcut keys.

Glass-Ceramic Platform + Carbon Fiber Sheet

The printer has a heatable glass-ceramic platform and a carbon fiber sheet coverd. Glass-ceramic have hight thermal efficiency and best low-expansion coefficient, so it don't deform when heating&cooling.

Carbon fiber sheet is tough and removable. Heat can be deliver efficiently. Most materials can be extruded and sticked to bed very well.

Air Filter System

The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.

Automatic Leveling Platform

Use of 25 points through the probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

FILAMENT & APPLICATION

standard f430 are able to print PLA,ABS,Nylon,etc perfectly. The f430-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK filament as well , which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wear resistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries.
