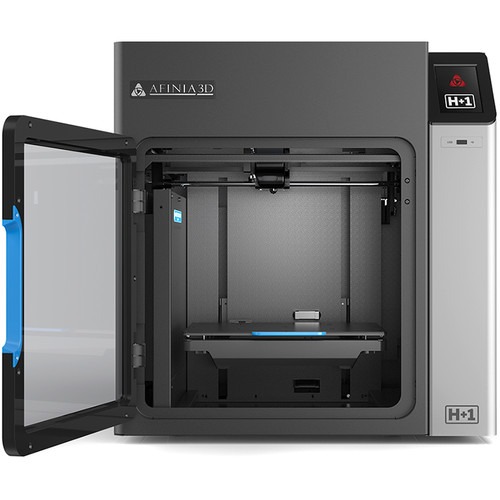

Afinia H+1 3D Printer

Home
3D printers
Afinia H+1 3D Printer

Afinia H+1 3D Printer

Price:

$2,199.00

SKU:

194577626

Brand:

Afinia

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Designed to give you more control while printing 3D models, the Afinia H+1 3D Printer comes with three material-specific, interchangeable extruders, a variety of nozzle diameter sizes, and smart support material technology. The H+1 has a large 10 x 8.8 x 8" max build volume and layer resolution support, ranging from 50 to 400 microns.

The enclosed print chamber features an auto-leveling print build plate as well as a circulating, dual-filtered system for reducing emissions. The H+1 uses 1.75mm filaments and supports a variety of materials, such as ABS, PLA, TPU, PC, PETG, and more. Print via Wi-Fi, USB, and LAN. You can also print using a USB flash drive and selecting files on the 4.3" color LCD touchscreen.

The Afinia H+1 3D Printer is compatible with Windows 7 and later, Mac OS 10.10, and iOS devices, such as the iPad and iPhone. It comes with a 500g spool of 1.75mm ABS filament to get you started printing right away.

Improved Material Compatibility

The H+1 comes with three material-specific printheads. In contrast to an all-in-one extruder, these interchangeable heads are designed specifically for each material's characteristics, allowing for greater filament control and a better finish.

The full metal printhead is tailored for high temperature materials, such as ABS, ABS+, ASA, PETG, Polycarbonate, Polypropylene, Nylon, and Carbon Fiber (depends on the base materials).

The extruder with an effective cooling system and a PTFE feed path is tailored for low temperature materials, such as PLA, Metal-Filled PLA, Wood-Filled PLA, and Carbon Fiber (depends on the base materials).

The extruder with a spring-loaded feed path, double gears, a PTFE feed path, and a larger nozzle size is tailored for flexible materials, such as TPU and flexible filaments.

Different Nozzle Diameters

Along with the three interchangeable extruders, the H+1 also comes with a variety of included nozzles for more control and quality. Print profiles and resolutions are optimized for certain nozzle sizes, which are 0.2, 0.4, 0.5, and 0.6mm.

Circulating Filtered Chamber

The H+1 has a large HEPA and separated Activated Carbon filter for air filtration. Using a centrifugal fan, the H+1 constantly circulates and purifies air within the enclosure through both filters. The higher airflow capacity maintains a minimal UFP and VOC density inside the printer.

Out-of-the-Box 3D Printing

The H+1 is shipped fully assembled, ready to use, and with all the materials you'll need, so you can start printing in minutes. Just install the software (compatible with Windows, macOS, and iOS) and print via Wi-Fi, USB, or Ethernet.

Easy to Use, Powerful Software

The software features an easy-to-use interface for laying out, orienting, duplicating, and scaling parts. Simply use the included utility to calibrate the printhead height, and you'll be printing in minutes. The software can easily import STL files, and the output can be customized in terms of the amount of support material and "raft" (base support) printed. Break-away support material is simple to remove, and tools for aiding the break-away are included. Design files for 3D printing can be created using online software, professional software such as SolidWorks (sold separately), or by downloading from the extensive online 3D printer community for free.

Product Specification

Printer

Print Technology	Fused Filament Fabrication (FFF), Marketed as Melted Extrusion Modelling (MEM)
Build Volume	10 x 8.8 x 8" / 25.4 x 22.35 x 20.3 cm
Number of Extruders	1
Layer Resolution	50 to 400 micron / 0.05 to 0.4 mm
Supported Extruder Nozzle Diameter	0.2 mm (Included) 0.4 mm (Included) 0.5 mm (Included) 0.6 mm (Included)
Extruder Nozzle Temperature	570°F / 299°C
Positioning Precision	XY Axis: 7 micron / 0.007 mm Z Axis: 1.5 micron / 0.0015 mm
Print Speed	200 mm/s
Filament Compatibility	1.75 mm Diameter: ABS, Flexible Materials, PC, PETG, PLA, TPU

Build Area

Build Area Type	Enclosed
Build Plate Features	Auto Leveling, Heated

Connectivity

System Connection	1x USB-A 1x RJ45
Wireless	Wi-Fi
Media/Memory Card Slot	No

Software

OS Compatibility	Computer: Windows 7 or Later / macOS 10.7 or Later Mobile: iOS Only
Supported 3D File Types	.3ds, .3mf, .gcode, .obj, .off, .ply, .stl, .up3
